New 12mm Dome Push Button Switch (ON)-OFF Waterproof

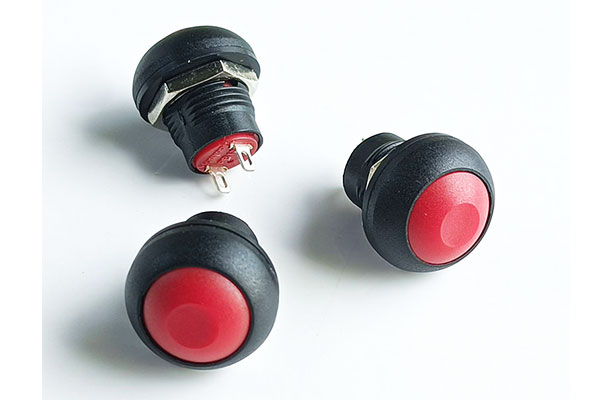

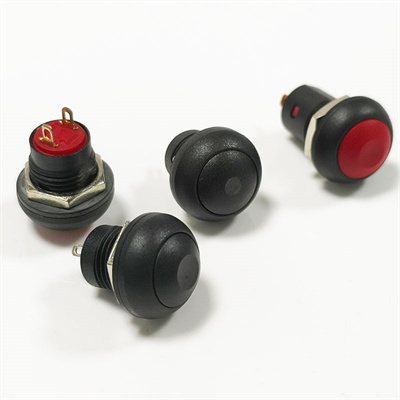

FVWIN has introduced the PB15 Series 12mm miniature waterproof push button switch, designed for electronic equipment that requires a compact panel switch with front-panel sealing. With a 12mm mounting size, sealed construction, and optional LED illumination, the PB15 Series can be used where installation space is limited but protection against water and moisture is still required.

The PB15 is a specially designed sealed push button switch. It uses a thermoplastic body with a silicone component inside the switch structure. An O-ring and locking metal nut are supplied for panel mounting, helping achieve an IP67 protection level at the front panel when properly installed.

Compact Structure for Space-Limited Equipment

The 12mm size is one of the main features of the PB15 Series. Compared with larger panel switches, its compact structure allows designers to reserve more space for other components, wiring, or control functions.

The series is available with dome button options, while the button tops can be supplied in different colors. These options allow equipment manufacturers to match the switch to different panel layouts and operating requirements.

The PB15 Series is available in both LED lighted and non-lighted versions. For applications that require visual indication, the illuminated version can be used to show operating status or identify a control function.

Flexible Connection and Panel Mounting

The PB15 switch base and silicone button are designed for panel mounting, while the terminals can be connected with a standard connector or installed on a PCB, depending on the equipment structure.

For manufacturers, this provides more flexibility when designing the internal wiring and PCB layout. The supplied metal nut and O-ring also simplify the basic panel installation process.

Where Can the PB15 Be Used?

The compact size and waterproof panel design make the PB15 Series suitable for equipment where space and environmental protection are both important. Typical applications may include:

• Compact electronic equipment

• Outdoor control panels

• Small control devices

• Industrial electronic equipment

• Consumer electronics

• Portable equipment

• Equipment exposed to moisture or water splashing

For OEM and ODM projects, the choice between flat or dome buttons, different button colors, and LED or non-LED versions can be considered according to the panel design and operating requirements.

A Practical Option for Compact Waterproof Controls

When selecting a miniature push button switch, engineers usually need to consider more than the mounting diameter. Button shape, panel sealing, connection method, available space, illumination, and installation structure can all affect the final design.

The PB15 Series 12mm miniature waterproof push button switch combines a compact 12mm panel size with a sealed structure, IP67 front-panel protection, multiple button options, and LED/non-LED versions. It is designed for equipment manufacturers looking for a small push button that can be integrated into compact control panels while providing protection against moisture during normal use.

For detailed specifications, installation dimensions, terminal configurations, and available versions, buyers can refer to the PB15 Series product information before selecting the suitable configuration for their equipment.
