New TS4 Series: Momentary Push Button Switch Released

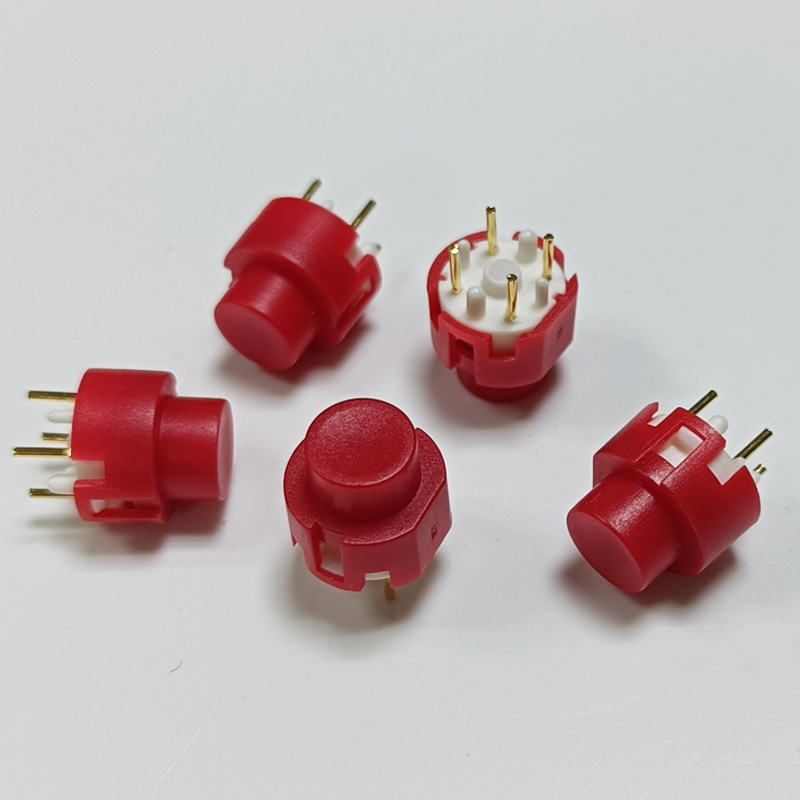

FVWIN's TS4 Series momentary push button switch is a compact SPST tactile switch designed for applications that require a small and easy-to-operate button. The TS4-3A version features an approximately 8mm diameter and 13mm height, providing a compact structure while maintaining a practical operating surface.

The TS4 Series is available with different button colors, allowing equipment manufacturers to use color coding for different control functions or match the appearance of the product panel.

Compact SPST Momentary Design

The TS4-3A uses an SPST momentary circuit. When the button is pressed, the contacts are activated, and the switch returns to its original position after release.

With its small body and 9mm actuator diameter, the switch can be considered for compact electronic equipment where installation space and button accessibility need to be balanced.

The switch uses a wear-resistant material and silver contact points. The design is intended to provide stable electrical contact during repeated operation, with a rated mechanical/electrical life of up to 100,000 cycles under the specified conditions.

Key Specifications of TS4-3A

These specifications can be used as a reference when engineers compare compact tactile switches for control or input functions.

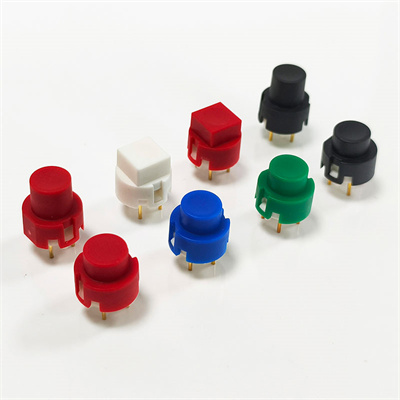

Color Options for Different Control Functions

The TS4 Series is available with different button colors, which can be useful when several tactile switches are installed on the same control panel.

For example, different colors can be used to distinguish operating functions or provide a clearer visual layout for users. The compact actuator also provides a direct operating point without requiring a large panel opening.

Where Can the TS4 Series Be Used?

The small size and momentary SPST configuration make the TS4 Series suitable for a range of electronic control applications, including:

• Compact electronic equipment

• Engery store equipment


• Control panels

• Keypad assemblies

• Consumer electronics

• Industrial control devices

• Instrument panels

• Small electrical equipment

When selecting the switch for a specific project, engineers should consider the required operating force, travel, panel or PCB layout, electrical load, operating temperature, and expected switching frequency.

FVWIN also provides the TS3 Series square momentary tact switch as another option for compact control applications. The TS3 Series offers various button color options and a rated life of up to 500,000 cycles. Its contact point uses gold plating to support reliable electrical contact, while the construction is designed with insulation and temperature resistance in mind.

The TS3 and TS4 Series can therefore be considered according to the required button shape, life expectancy, installation structure, and application requirements.

A Compact Option for Momentary Switching

The TS4 Series focuses on a simple combination of small size, SPST momentary operation, color button options, and stable contact performance. Its approximately 8mm diameter and 13mm height make it suitable for equipment where a compact tactile switch is required without sacrificing convenient button operation.
