What Is a Metal Push Button Switch

A metal push button switch is a mechanical switch with a metal housing and button used to control an electrical circuit.

Metal push button switch is operated by pressing the button, which changes the state of the internal contacts. Depending on the design, the switch can work as a momentary or latching switch.

Metal push button switches are widely used when a control panel needs a compact switch with a stronger mechanical construction. Compared with many plastic buttons, a metal housing can provide better resistance to regular handling, impact, and wear. Stainless steel is also commonly used when corrosion resistance is important.

1. How Does a Metal Push Button Switch Work?

The basic operation is simple. When the button is pressed, the internal contacts change their electrical state. In a momentary metal push button switch, the circuit changes only while the button is being pressed. Once released, the switch returns to its original position.

A latching or maintained version works differently. Pressing the button changes the circuit state and the switch remains in that position until it is pressed again.

This difference is important when selecting a switch for a specific control function.

2. Common Features

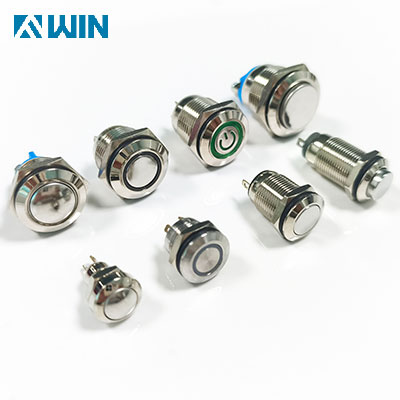

A metal push button switch can be available with different mounting sizes, head shapes, terminal types, and electrical specifications. Common options include 12mm, 16mm, 19mm, 22mm, and 25mm mounting sizes, depending on the product series.

Other options may include:

• Stainless steel or other metal housing

• Flat, raised, or dome head

• Momentary or latching function

• LED ring or dot illumination

• Power symbols or customized markings

• Pre-wired or solder terminals

• Waterproof designs such as IP65 or IP67

These options allow engineers to select a switch according to the panel design and operating environment.

3. Where Are Metal Push Button Switches Used?

Metal push button switches are commonly found in industrial control equipment, access control systems, vending machines, coffee machines, transportation equipment, audio equipment, computer cases, and commercial machinery.

For outdoor or industrial applications, a waterproof metal switch can be useful where the panel may be exposed to dust, moisture, or frequent operation. For consumer and commercial equipment, illuminated versions can make the button easier to identify.

4. What Should Buyers Check?

Before purchasing a metal push button switch, engineers and purchasing teams should check the mounting hole size, switching function, current and voltage rating, head design, terminal type, IP rating and expected mechanical life.

The button marking and LED configuration should also be confirmed if the switch is used as a power or status control.

For B2B projects, sample testing is recommended before mass production. The switch should be checked against the actual panel cut-out, wiring, button position, and electrical circuit to ensure that the selected metal push button switch fits the complete equipment design.
