Illuminated Push Button Switches

Illuminated Push Button

View PDF materials

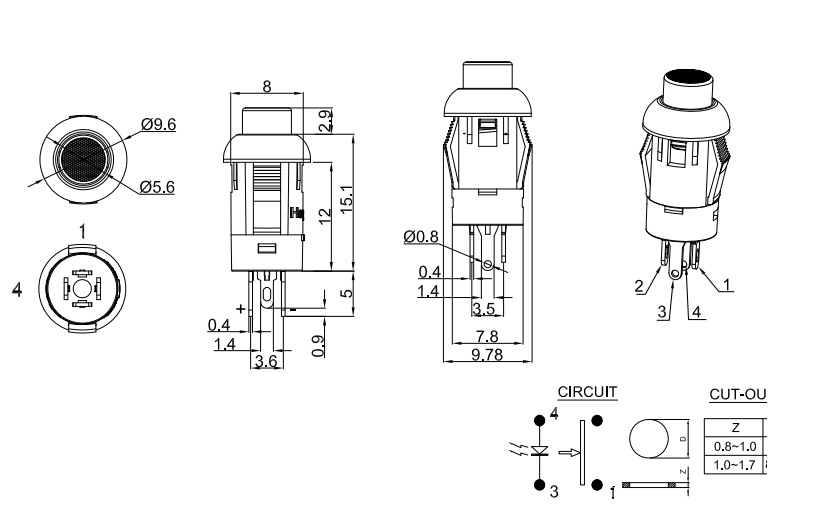

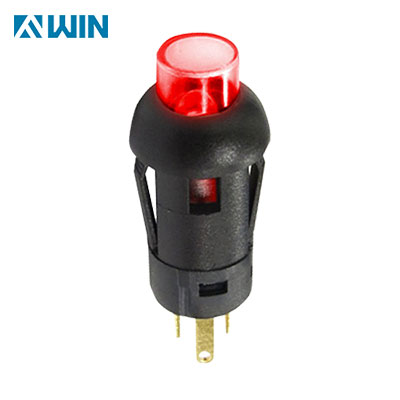

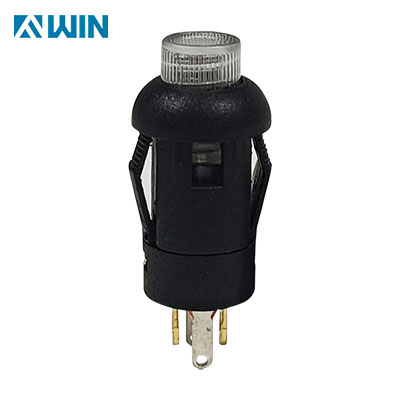

This is the circle diameter 9.6mm momentary illuminated push button switch,the top round button has size of diameter 5.6mm,the cut out size is 8mm.The case and housing is made from high-quality Nylon 6/6 and terminal is made from copper alloy with gold plated material. The total length of a push button switch is 18mm. It has illuminated water clear actuator.

This miniature push button switch with momentary switch operation and 1-pole on-off switch for controlling a machine or a process.
