Illuminated Push Button Switches
Red Illuminated Push Button Switch
Red Illuminated Push Button Switch

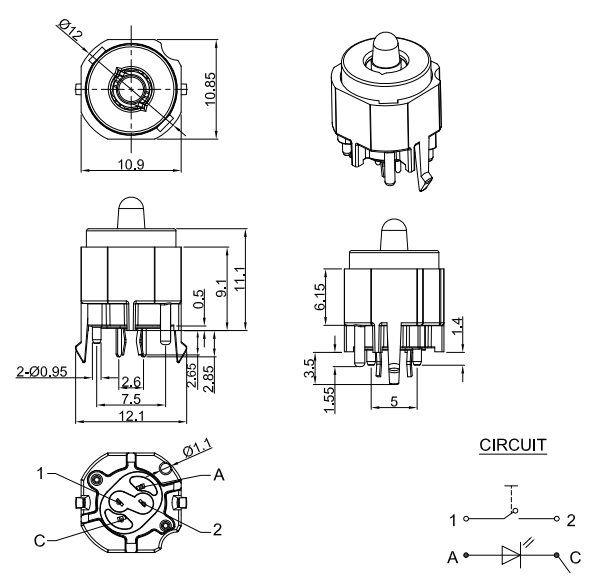

Specifications
Circuit | SPST |
Current Rating | 10mA min/100mA max |
Voltage Rating | 2VDC min/30V DC max |
Dielectric Withstanding Voltage | 500VAC for 1min |
Contact Resistance | 50mΩ max(initial) |
Insulation Resistance | 100mΩ min |
Actuation Force | 250±100gf |
Total Travel | 1.5±0.4mm |
Lifespan | 1,000,000 cycles |
