Illuminated Push Button Switches

Illuminated Console Push Button Switch

View PDF materials


The PB86 series illuminated push button switch has alternative action circuit and variety cap colors,it also offers different LED colors,such as single LED and bi-color LEDs option,high reliability and long actuation life makes the illuminated button more stable;besides,the customized legends on the top cap is accepted.This illuminated pushbutton has clear piano key button sense of touching,it’s ideal for stage equipment control button design.


Alternate action circuits available
Variety Color Caps&LED are available
High reliability and long operate life
Customized Legend on the top cap
Clear Piano key button sense of touch

Circuit：SPST

Current rating: 12mA

Voltage rating:24VDC

Dielectric withstanding votalge:250VAC for 1 minute

Contact resistance: 100mΩ Max.(Initial);

Insulation resistance:100mΩ Min;

Insulation strength: 1000VAC for 1 minute;

Operating force: 170±50gf

Travel:2.0±0.4mm;

Operating life:50,000 cycles Min;

Solder specification：260℃ for 5 seconds

Function: Momentary

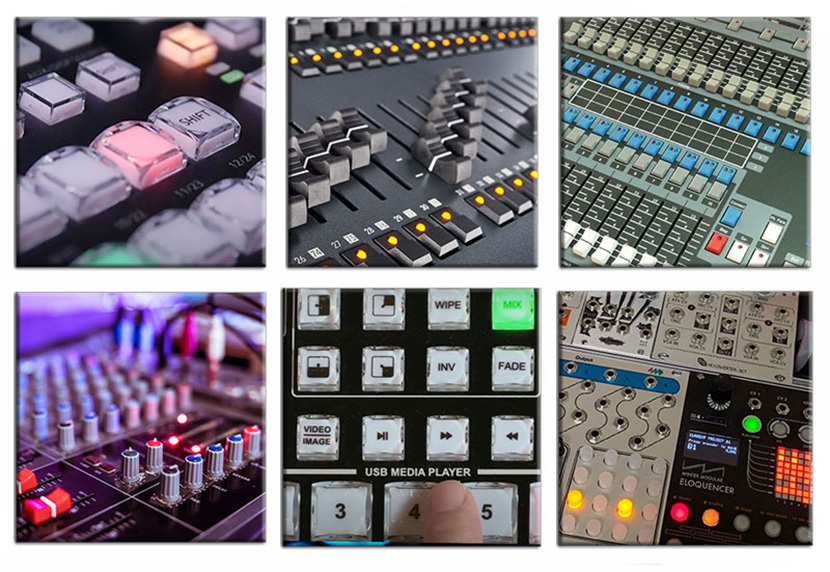

The PB86 series illuminated push button switch has a variety of application for stage lighting console button,control keyboards and other industry control keyboards.
