XLR Connector

3-Pin XLR Female Panel Connector Black

3-Pin XLR Female Panel Connector Black(图1)

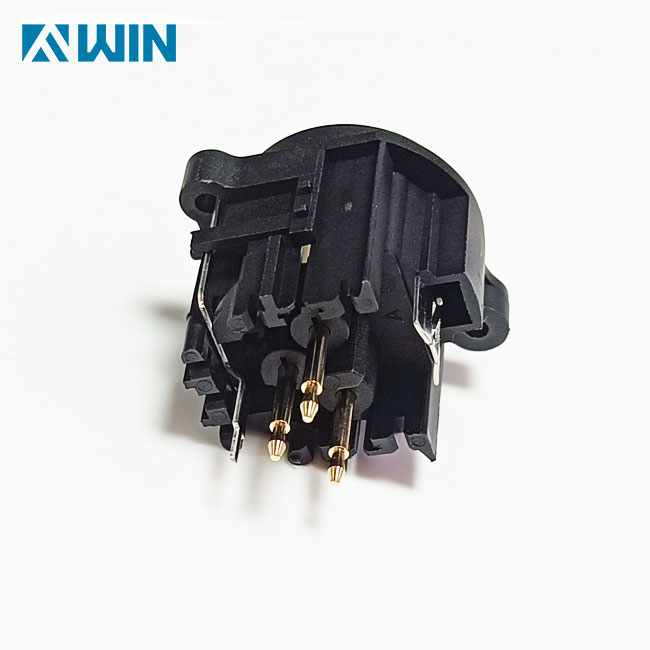

3-Pin XLR Female Panel Connector Black(图3)

Model	XLR-CT305HM
Pin	3 PIN
Rated	250V DC 1.0A
Temperature	-30 ~ +80 ℃
Contact Resistance	≤0.2 MΩ
Insulation Resistance	≥100 MΩ
Withstand Voltage	1500V, AC/min
Terminal Strength	≥30 N
Life Span	5000 cycles
Product Type	XLR 3 Pin Male Panel Mount Socket Connector
Application	Audio-Video Equipment, Microphone, Video, Mixer, Power Amplifier, Speaker and Stage Sound Lighting etc.
Housing Material	Plastic, Metal
Contact Material	Silver or gold plated contacts

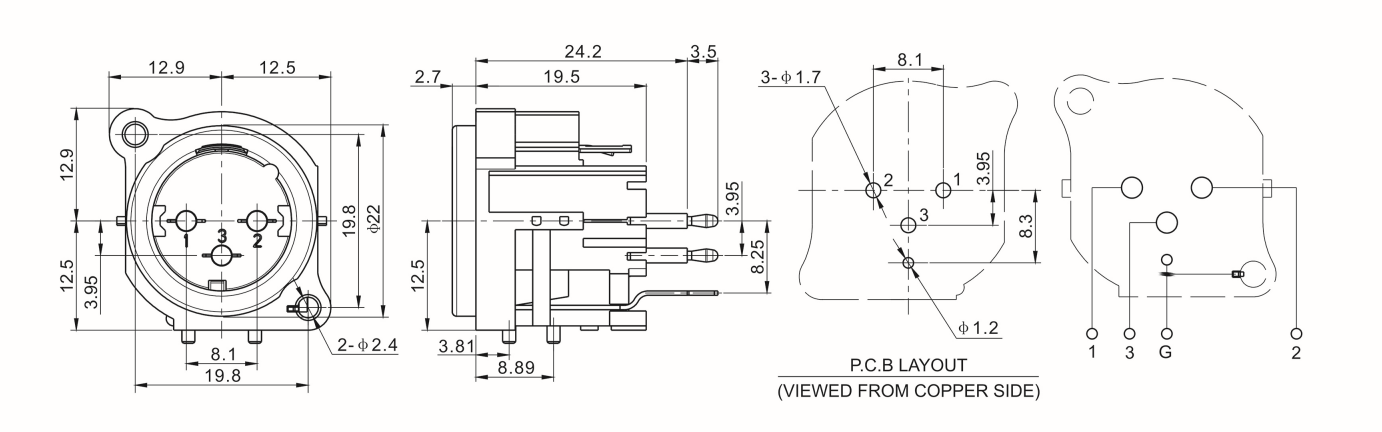

3-Pin XLR Female Panel Connector Black(图4)

l Attractive in price and quality

l The type of contact ways with high pressure for highest durability

l Silver plated and gold plated options,but the gold plated contact and PCB filed are an ideal selection for conductivity and solderability

l Parted ground contact to matching connector housing and front panel

l It’s available with 3, 4, 5, 6 and 7 pin configuration
