XLR Connector

Push XLR Connector Female PCB Mount Socket

View PDF materials

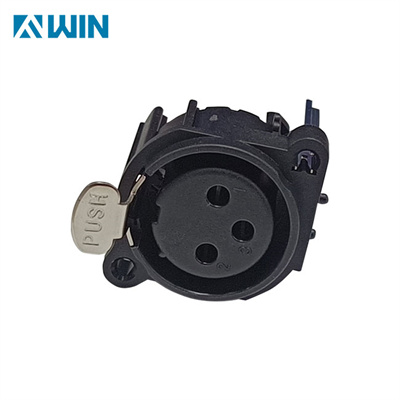

Push XLR Connector Female PCB Mount Socket(图1)

This is the vertical XLR connector with black housing and latch type steel push,the Push XLR Connectors are round plastic body XLR PCB mount panel connectors;Our XLR socket connector was classified with Female and Male socket,at present,it’s available with Vertical PCB mount and Horizontal PCB mount design,there has the latching type option,the PIN terminal has optional with gold plated and silver plated;our XLR connector has plastic housing,and it has the 3 or 5 pole selection,it has the front panel and rear terminal installation ways.

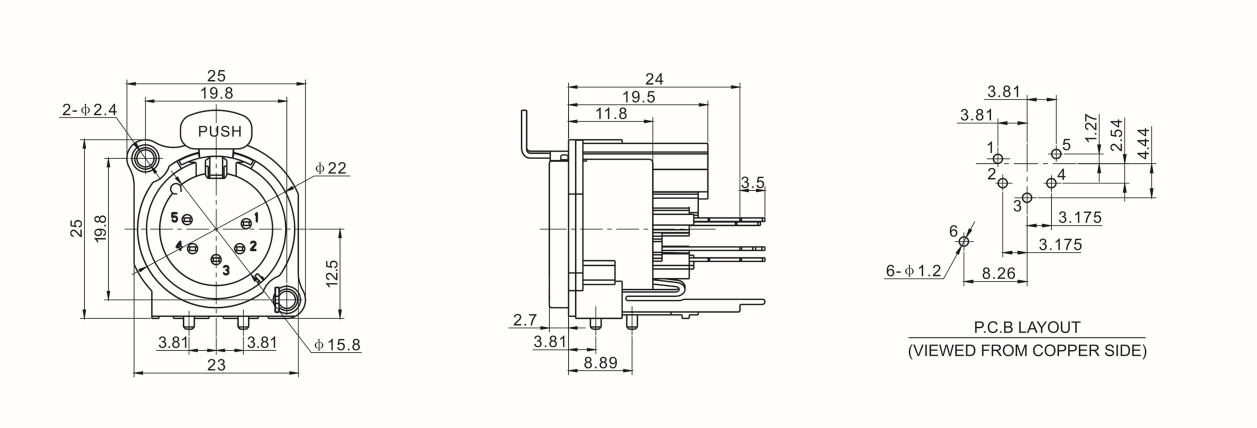

Push XLR Connector Female PCB Mount Socket(图2)

Product Name: XLR Female connector PCB mount with push

Pin Number:three PIN

Life Expectancy:5000 cycles

Pole:3 Poles

Latch Type:Yes

Type:XLR Connector

Mounting Type: Panel Mount

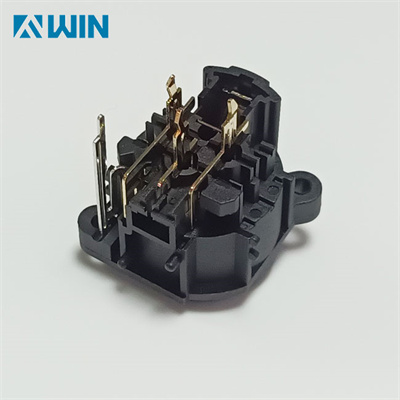

Push XLR Connector Female PCB Mount Socket(图3)

Push XLR Connector Female PCB Mount Socket(图1)

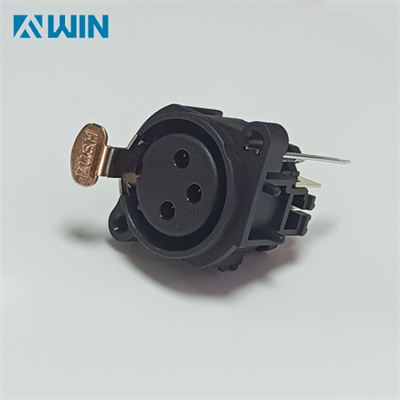

Push XLR Connector Female PCB Mount Socket(图5)

The FVWIN was founded in 2013. The main activities — is the supply of electronics switches and sockets as well as connectors, a variety of illuminated switches, power socket ,USB connector ,XLR connectors and the provision of services for the production of PCB and contract manufacturing of electronic products.
Our products covers a wide range of audio and video equipment,instruments,medical equipment,home appliance,security equipment,etc

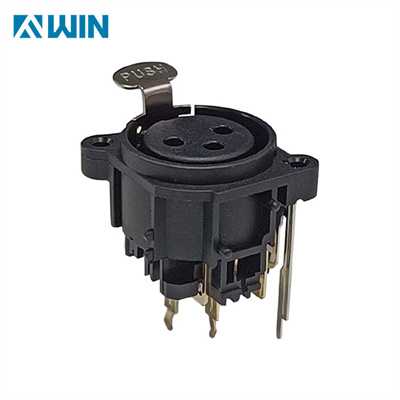

Push XLR Connector Female PCB Mount Socket(图6)
