XLR Connector

Mount Male XLR Connector Plastic

View PDF materials

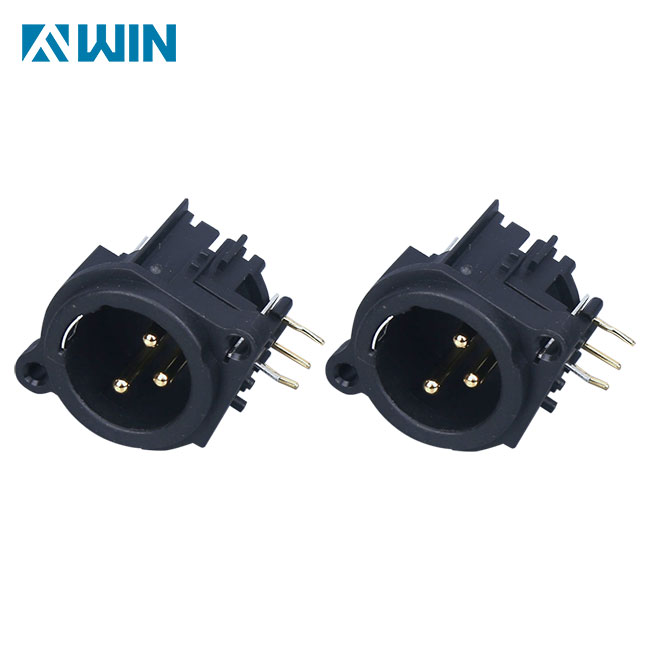

Mount Male XLR Connector Plastic(图1) The XLR socket connector has the difference of female and male,the male connector has contact pin and female XLR connector is receptacle,according to the international convention,the male XLR connector is output terminal,and the male is input terminal.

XLR connector is also called as Cannon socket or Cannon terminal,the XLR means the terminal of contact surface with rubber,so the XLR derives from it.The XLR also has latch push construction,in general,the XLR terminal has three pins.

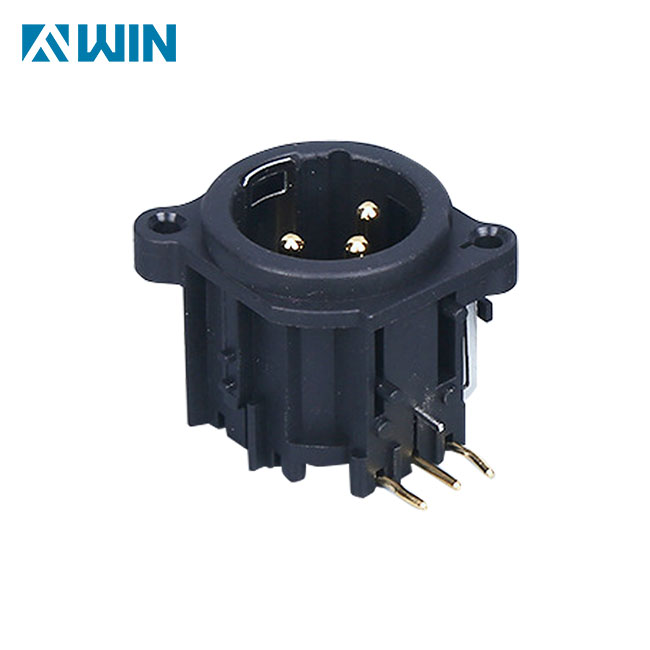

Mount Male XLR Connector Plastic(图2)

Mount Male XLR Connector Plastic(图1)

Mount Male XLR Connector Plastic(图4)

The Merit Of XLR connector

1. The promotion of sound field,it’s a single terminal output that likes a small KTV,the balance output is a big theatre,the difference of space sense.

2. The improvement of driving force,owing to the balance output will separate the signal from left and right channel,that makes the separately drive,it’s easy to put to good use for earphone’s potential,

3. Dynamic and detail improvement, the balance output will simultaneously output the positive and negative signal of contrary phase,the two signal will overlay the signal and then the noise interruption will offset,then promoting the SNR,the dynamic and detail of sound will be improved.

Mount Male XLR Connector Plastic(图5)

Three Pin XLR socket connectors is suit for the pro camera,audio and video equipment,microphone,audio instruments,power amplifier,sound console and other audio apparatus filed.

Mount Male XLR Connector Plastic(图6)
