SPST Momentary Tact Button Key Switch(图1)TS4 Series Keyboard Tactile Button Switch.pdf

SPST Momentary Tact Button Key Switch(图1)

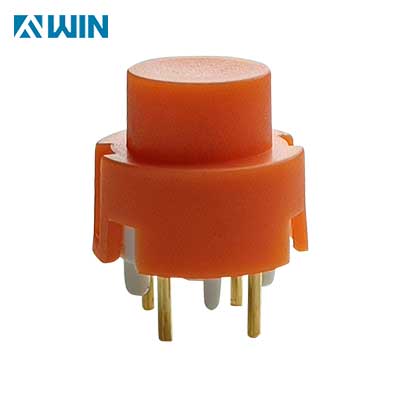

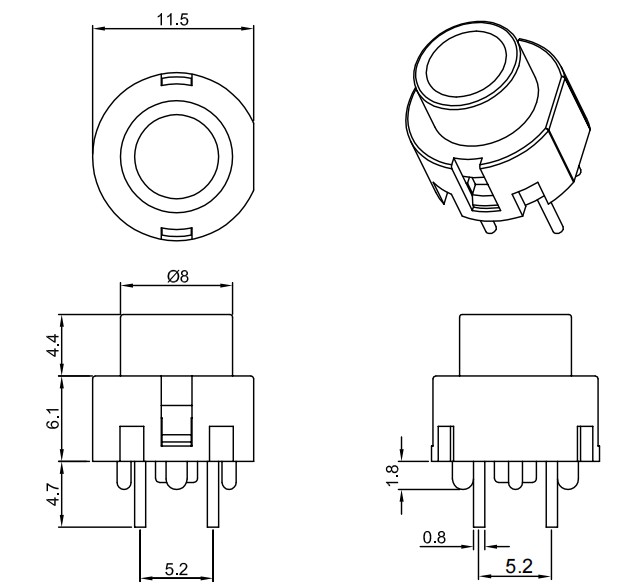

This is our TS4-2R series of momentary tact push button key switch,it's SPST circuit.The momentary tact key button switch has 11.5mm external diameter,the top button diameter is 8.0mm and the top to PCB mount spacing it 10.5mm,the pin space is 5.2mm.

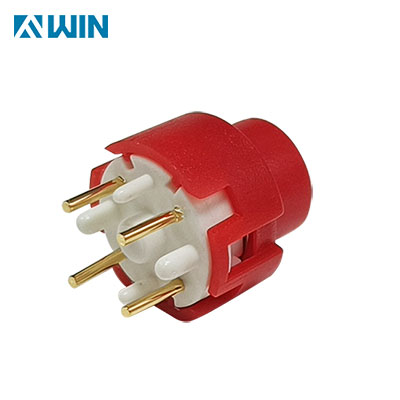

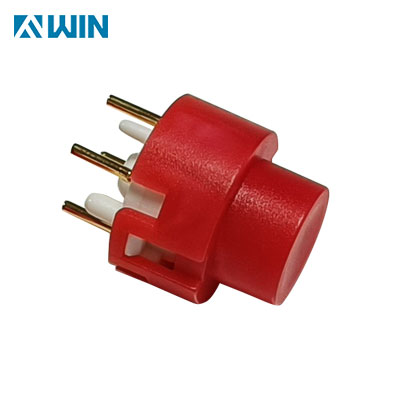

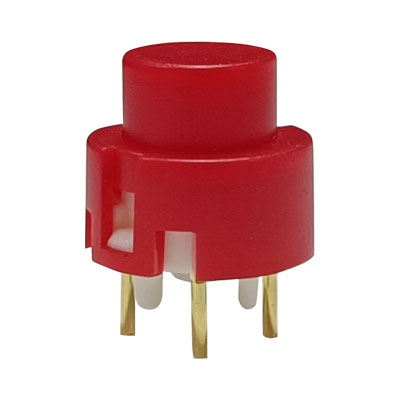

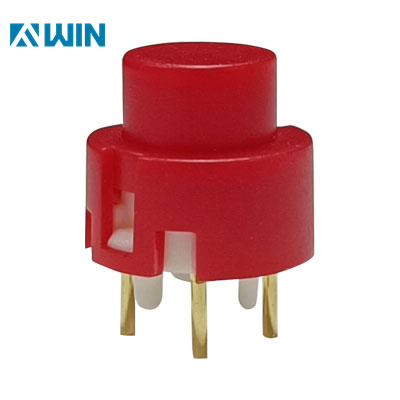

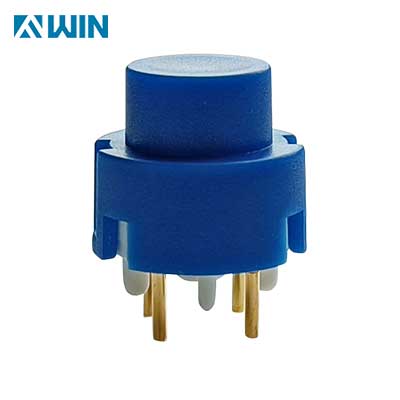

This TS4 series of red tact key push button switch has multiple color of button options,it features with gold plated terminal that lead to stable reliability,it's a perfect applicaitons for audio modular,monitor and MIDI controllers as well as other control system panel.

SPST Momentary Tact Button Key Switch(图2)

Circuit:

SPST

Contact resistance:

 100mΩ Max.(Initial);

Current rating:

30mA

Insulation resistance:

100mΩ Min;

Voltage rating:

30VDC

Dielectric withstanding voltage:

500VAC for 1 minute

Operating force:

200±50gf

Total travel:

0.7mm±0.2mm

Operating life:

100,000 cycles

Solder specification:

260℃ for 5 seconds

Function:

OFF-(ON)

Operating temperature:

+10℃~+60℃

SPST Momentary Tact Button Key Switch(图3)

SPST Momentary Tact Button Key Switch(图1)

SPST Momentary Tact Button Key Switch(图5)

SPST Momentary Tact Button Key Switch(图2)SPST Momentary Tact Button Key Switch(图7)

SPST Momentary Tact Button Key Switch(图8)SPST Momentary Tact Button Key Switch(图9)

SPST Momentary Tact Button Key Switch(图10)

Our electronics tact key button switches was extensively used to portable devices,vending machines,integrated PCB system,intelligent home control system,medical apparatus and instruments as well as professional audio and video equipment.

SPST Momentary Tact Button Key Switch(图11)

Q: Are you manufacture/ factory? Location?

A: Yes, office is located in Shenzhen , Dongguan province.

Q: Can I get free sample before placing an order ? MOQ?

A: Yes, free samples will get ready within 3~5 days. About tact switch, MOQ is 1,000pcs.

Q: What about the delivery time?

A: Stable delivery. 7-15 working days.
