Specification of metal Push Button Switches

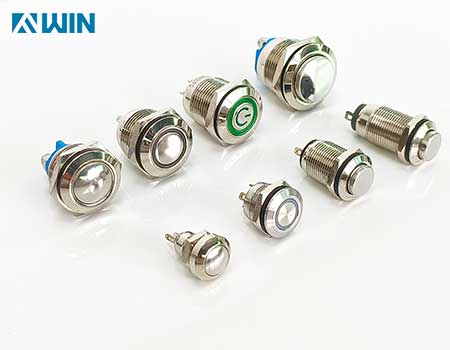

Metal push button switches are essential components used across a variety of industries for controlling electrical circuits. Whether in industrial machinery, automotive systems, consumer electronics, or outdoor equipment, these switches must meet specific requirements to ensure safe, efficient, and long-lasting operation. This guide outlines the key specifications to consider when choosing the appropriate metal push button switch for your application.

1. Electrical Specifications

• Voltage and Current Rating:
  The most critical factor when selecting a metal push button switch is ensuring it can handle the voltage and current of your system. The switch’s voltage and current ratings should match the operational parameters of the circuit. For example, a 12V DC system requires a switch that can handle at least 12V DC, and a 250V AC circuit needs a switch rated for 250V AC. Make sure to account for inrush current in AC circuits, as it may require a switch rated for higher current than the steady-state operating current.

• Contact Resistance:
  Low contact resistance is crucial for maintaining efficient electrical flow, particularly in sensitive electronics. High resistance could cause power loss, heating, or poor circuit performance. Choose switches with reliable, low-resistance contacts for high-performance applications.

• Switch Type (Momentary or Latching):
  Depending on your application, decide whether you need a momentary switch (which returns to its default position after being pressed) or a latching switch (which stays in its actuated position until pressed again). Momentary switches are ideal for triggering an action like starting a machine or resetting a system, while latching switches are better for on/off control, like powering equipment.

2. Mechanical Features

• Actuation Force:
  The actuation force refers to how much pressure is needed to press the button. Light-touch switches are user-friendly and require less force, making them ideal for applications where comfort is a priority. Conversely, switches with a higher actuation force are better for preventing accidental activation in high-traffic or industrial environments.

• Travel Distance (Stroke):
  The stroke is the distance the button travels when pressed. A longer stroke may provide more tactile feedback, which is useful in safety-critical applications. A shorter stroke can be beneficial in systems requiring rapid or frequent button presses. The stroke also affects the switch's life cycle and durability.

• Tactile Feedback:
  Metal push button switches often offer tactile feedback, such as a click or snap when the button is pressed. This feedback is important for confirming the switch’s actuation, reducing the likelihood of errors in critical applications.

• Mounting Style:
  Metal push button switches come with different mounting options: panel-mount, PCB-mount, and through-hole. Panel-mounted switches are ideal for control panels or dashboards, whereas PCB-mounted switches are used in electronic devices and circuits. The mounting method you choose will depend on the design and assembly requirements of your system.

3. Environmental and Durability Considerations

• Ingress Protection (IP) Rating:
  The IP rating indicates the level of protection the switch offers against dust, moisture, and environmental contaminants. For use in harsh environments, such as outdoor settings or in industries where exposure to water or dirt is frequent, choose switches with higher IP ratings, like IP65 (dust-tight and water-resistant) or IP68 (protection against prolonged submersion in water).

• Temperature Range:
  Ensure that the switch can operate within the temperature range of your environment. Some metal push button switches are designed to work in extreme temperatures, from freezing cold to high heat. Consider your system’s temperature requirements to ensure reliable operation.

• Corrosion Resistance:
  Metal switches, especially those used in outdoor or marine applications, need to be resistant to rust and corrosion. Stainless steel or anodized aluminum are common materials for switches exposed to harsh conditions. These materials resist oxidation, ensuring that the switch remains functional and durable over time.

4. Aesthetic and Functional Design

• Illumination:
  Many metal push button switches come with built-in LEDs for illumination, which can be useful for signaling operational status. Options for multicolor LED lighting allow you to visually differentiate between states like “on,” “off,” or “error.” Illumination can be an important feature for visibility in low-light environments, such as control rooms or outdoor systems.

• Size and Shape:
  The size of the switch should be compatible with your panel’s design and available space. Standard diameters range from 12mm to 40mm, but custom sizes may be available for specific designs. The shape of the button (round, square, or custom) can also impact the appearance and functionality of the switch. Choose a design that complements your overall system layout.

• Custom Engraving or Markings:
  For user-friendliness, many switches allow for engraving or printing of symbols, text, or logos. Custom markings help users identify switch functions quickly, improving operational efficiency.

5. Compliance and Certifications

• Industry Standards:
  Ensure the switch meets necessary industry standards such as UL, CE, or RoHS compliance for safety and environmental responsibility. For some industries (e.g., automotive, medical, or aerospace), specific certifications may be required to ensure that the switch meets regulatory standards.

• Safety Features:
  If the switch is used in critical applications, such as emergency stops or industrial machinery, look for models with safety-rated certifications to ensure they are fail-safe and suitable for high-risk environments.

Conclusion

Choosing the appropriate specifications for metal push button switches is critical to ensuring that they operate reliably, safely, and effectively within your system. Key factors like electrical ratings, environmental resistance, actuation type, and design preferences must be aligned with the needs of your application. By considering these specifications, you can select a switch that maximizes performance, enhances user experience, and guarantees durability for your specific use case.
