3 Way DIP Switch

One of the most convenient and versatile tools in the world of electronics is the humble dip switch. It has been around for decades, but new and improved variants are still being developed today. One of the most popular types of dip switches is the 3 way dip switch.

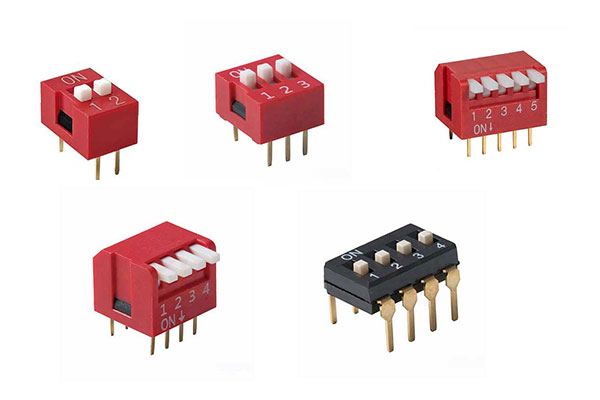

So, what is a 3 way dip switch? Essentially, it is a small, rectangular device with three parallel toggles or switches. These switches can be flipped up or down to represent two different binary states (ON or OFF). By combining the different states of the three switches, you can create up to eight possible combinations.

The biggest advantage of using a 3 way dip switch is its versatility. It can be used in a wide range of electronic devices, from remote controls to programmable logic controllers (PLCs). In some cases, it might be used to select different operational modes or to customize certain settings, while in others, it could be used as a basic security feature to prevent unauthorized access.

One popular application for a 3 way dip switch is controlling a robot arm. By configuring the switches in a specific sequence, you can program the arm to perform a variety of tasks, such as lifting, rotating, and picking up objects.

Another common use for a 3 way dip switch is in the field of audio equipment. For example, a sound engineer might use a 3 way dip switch to control different amplifier channels, or to select different types of EQ or compression settings.

In addition to its practical applications, a 3 way dip switch can also be a fun and engaging tool for experimenting and learning about electronics. By playing around with the different switch configurations, a novice hobbyist can gain a deeper understanding of how electronic circuits work and how they can be manipulated.

Overall, a 3 way dip switch is an essential tool for anyone interested in electronics, whether you are a professional engineer or a curious hobbyist. Its versatility, ease of use, and affordable price point make it an indispensable component in many electronic devices and projects.
