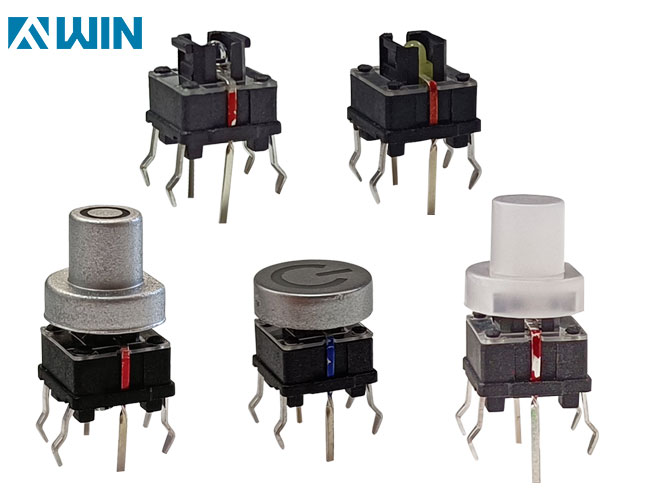

6 pin illuminated bi-color tact switch

The 6 pin illuminated bi-color tact switch is a type of switch used in various electronic devices. It is commonly found in consumer electronics, such as smartphones, laptops, and gaming consoles. This switch is unique in that it is bi-color, meaning it has two colors of LEDs that can be illuminated simultaneously or independently. Its tactile feedback also makes it easy to use and identify the switch state.

The switch has six pins that allow for easy integration into electronic circuits. The pins can be soldered onto a printed circuit board or attached using connectors. The pins are arranged in a 2x3 configuration, with the center pins being the common pins and the outer pins being the normally open and normally closed contacts.

The switch is designed to be small and compact, allowing it to be used in devices where space is limited. It measures 6mm x 6mm x 5mm and has a lifespan of over 100,000 cycles. It can handle a maximum voltage of 50V and a maximum current of 100mA.

The switch has a built-in bi-color LED that can be illuminated in either red or green. The LED can be connected to one of the pins or to an external power source. The switch has a dual-color design, which allows the LED to be illuminated in both red and green simultaneously, creating a yellow color. This feature is useful in applications such as gaming controllers, where different colors can be used to indicate different functions.

The switch has a tactile feedback mechanism that provides a click sound and physical feedback when pressed. This feature ensures that the user knows when the switch has been activated, making it ideal for applications where precision control is required.

The 6 pin illuminated bi-color tact switch is commonly used in gaming consoles, such as PlayStation and Xbox controllers. It is also used in mobile phones, tablets, and laptops. One application where this switch is particularly useful is in the keyboards of gaming laptops, where it can be used to illuminate the keys with different colors to indicate different functions.

Overall, the 6 pin illuminated bi-color tact switch is a versatile switch that is easy to use and integrate into various electronic devices. Its dual-color LED, tactile feedback, and compact size make it ideal for use in applications where space is limited and precision control is required.
