Right Angle 5.8 Push Button Switch

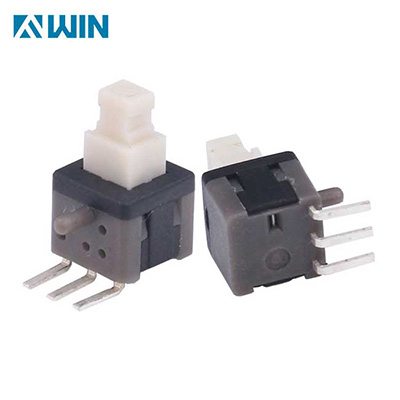

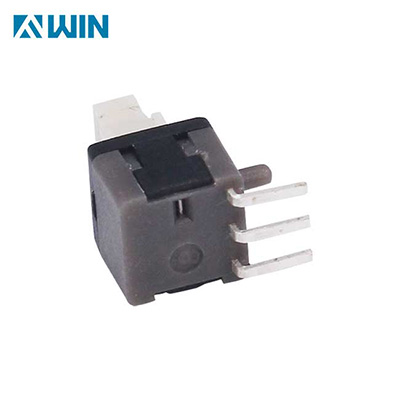

This is an 90 degree mini push button switch with three terminal,it has 5.8x5.8mm mini size,the housing side has a locating pin,that can make you stable mounting the tactile push switch on the PCB board.It provides with self locking and momentary function options,besides,these types of tactile push buttonn switch can matched with kinds of circle cap button.

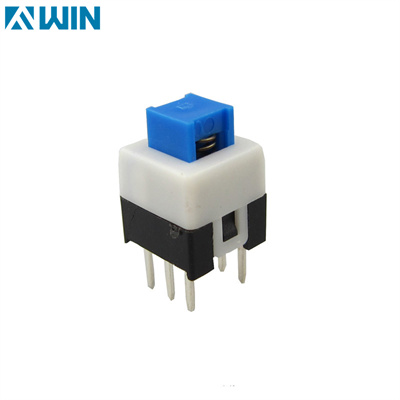

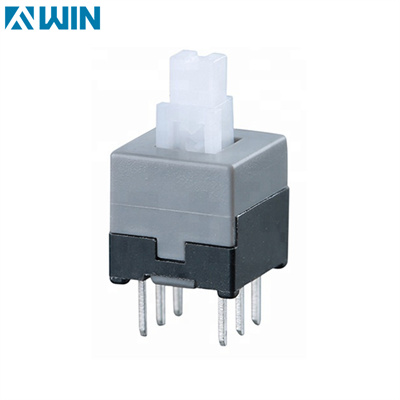

The PB series push button switch has size of 5.8mm x 5.8mm, 7mm x 7mm, 8mm x 8mm, 8.5mm x 8.5mm selections

Right Angle 5.8 Push Button Switch(图1)

1.RATING: DC 50V 0.5A

2.CONTACT RESISTANCE: 100mΩ MAX

3.INSULATION RESISTANCE: 100MΩ MIN

4.DIELECTRIC STRENGTH: AC 250V(50~60Hz)/60S

5.TEMPERATURE RANG: -40℃~+85℃

6.OPERATING FORCE: 180±50gf

7.MECHANICAL LIFE: 30,000 cycles

8.Function:self locking/momentary

Right Angle 5.8 Push Button Switch(图2)

  • Mini size and multiple dimension options

  • latching and momentary type option

  • various cap matching

  • An ideal solution for security devices and multimeter measurement

Right Angle 5.8 Push Button Switch(图3)

Right Angle 5.8 Push Button Switch(图4)

Right Angle 5.8 Push Button Switch(图5)

Right Angle 5.8 Push Button Switch(图6)Right Angle 5.8 Push Button Switch(图7)

Right Angle 5.8 Push Button Switch(图8)Right Angle 5.8 Push Button Switch(图9)

Right Angle 5.8 Push Button Switch(图10)

1. Tray/Carton box

2. Tape&Reel packing

3. Following to the requirements of customers
