Illuminated Push Button Switches
PRO AV Broadcast Style illuminated Buttons Switches

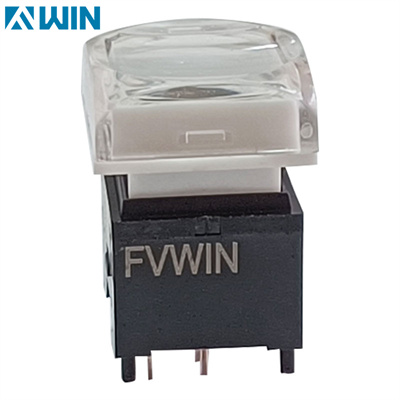

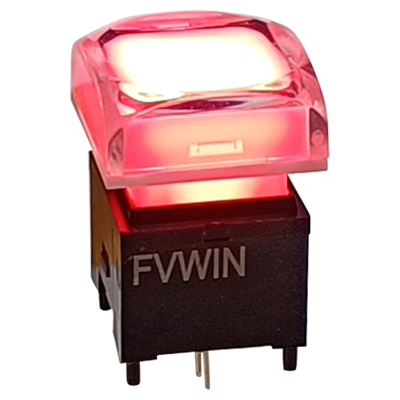

17*17mm Audio Illuminated Pushbutton LED Switches

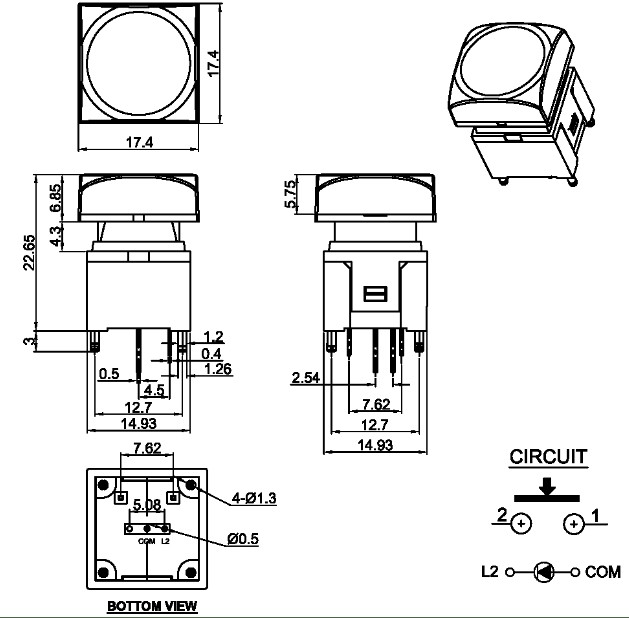

,the PB34 series of illuminated push button switch comes with 17*17mm square size,the switch measures 22.65 mm from the PC-board to the top of the cap and features a long travel of 4.5 mm,it has crystal cap button,there has single LED ,bi-color LED and RGB led options.
| Model | PB34-0000X |
| Size | 17*17*22.6mm |
| Product Type | illuminated push button switch |
| Rated | 12VDC ,100mA |
| Operation Force | 250±100gf |
| Total Travel | 4.5±0.2mm |
| Function | OFF-(ON) Momentary |
| Application | Matrix Controller, stage lighting console, broadcasting control system and other high-end equipment |
Broadcast,sound equipment (switcher / mixer etc.), amusement, measuring instrument, communication equipment, Multi-Channel & Monitor Panels,Control Processor,Module Desktop Controller ,matrix switcher etc
