Illuminated LED Tact Push Button
Clear LED Tact Switch Push Button

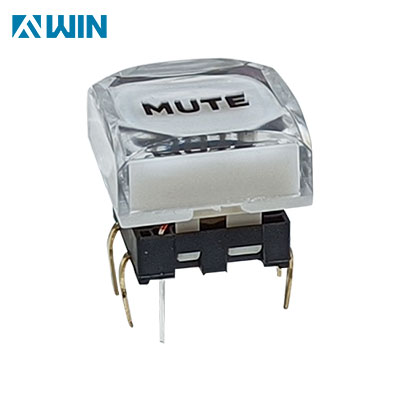

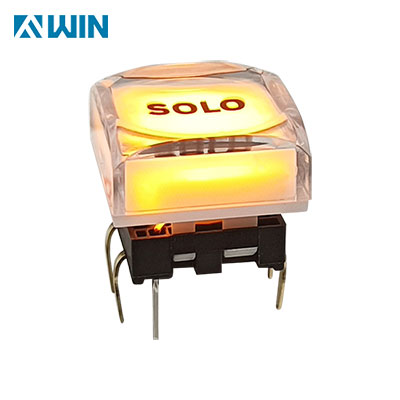

This is an illuminated LED tact button switch comes with 15x15mm size,it can be illuminated by various LED lights,it offers with red,green,yellow,blue and red as well as bi-color LED indicators option;the audio illuminated push button switch is an ideal application for LED video processor,broadcasting system,LED controllers and other music console ,analog synthesizer as well as pro audio and video instruments.
The TS15 series illuminated tact switch is a momentary SPST configuration push button,it has gold plated and silver plated contact terminal options,we accept to customzied any icons for your product design.
Model：TS15-10W57WTX

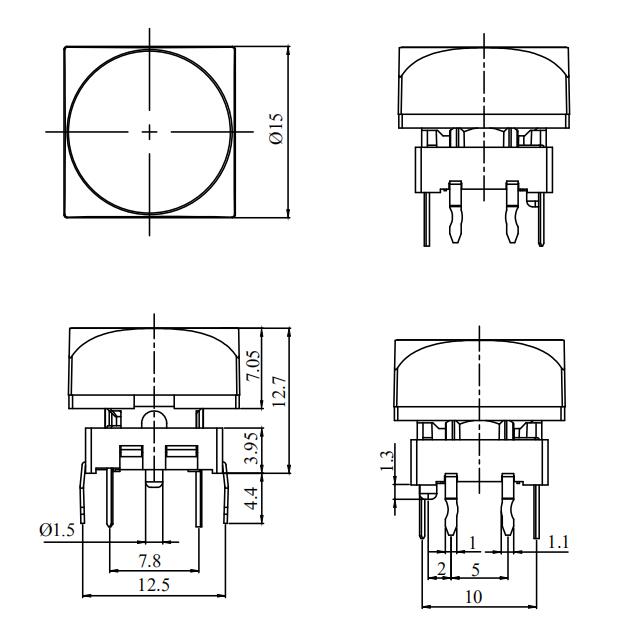

Size：15x15x12.7mm
Circuit：SPST
Rated：12VDC ,50mA
Contact Resistance：100mΩ（max）
Insulation Resistance：100MΩ（min）
Withstand Voltage：250VAC for 1 minute
Operation Force：250±50gf
Total Travel：0.4±0.15mm
Soldering Temperature：260℃ for 5 seconds
Using Temperature：+10℃ ~+ 60℃
Life：500,000 cycles
1. High quality concave 12mm/ 15mm/16mm/17mm flat clear button
2. Adjustable red,blue,white,green and yellow LED backlight
3. Front-panel configurable function buttons with multiple LED colors
4. Backlighting and field-replaceable legends
5. Applicated for video integration,AV system,Lighting Control System,lighting console,digital musical instruments
