DIP switch

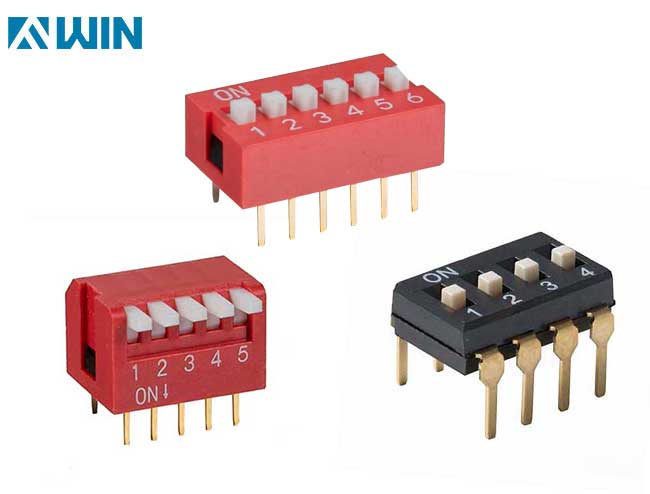

A DIP switch (Dual In-line Package switch) is a small electronic component that is used to change the settings or configuration of a device or system. It is a series of tiny switches arranged in a rectangular or square package that is designed to be inserted into a printed circuit board (PCB). Each switch in a DIP switch can be either in the 'ON' or 'OFF' position, allowing for many different combinations of settings.

DIP switches have been around for many years and have been used in a wide range of applications. They were originally developed for use in computer hardware, such as printers and modems, but have since been used in a variety of other applications, such as industrial machinery, telecommunications equipment, and even toys.

The main advantage of DIP switches is that they are easy to use and require no external programming or software. They provide a quick and easy way to configure a device or system without the need for specialist knowledge or equipment.

One of the most common uses of DIP switches is to set the communication settings of a device. For example, a modem may have a DIP switch that allows you to set the baud rate, data bits, parity, and stop bits. By changing the position of the switches, you can configure the modem to communicate with different devices or networks.

Another application of DIP switches is to set the address or ID of a device. For example, in a network of sensors, each sensor may have a DIP switch that allows you to set its unique ID number. This enables you to easily identify and locate each sensor in the network.

DIP switches are also used to set the mode of operation of a device. In some applications, such as industrial machinery, the operator may need to change the mode of operation depending on the task at hand. By using a DIP switch, the operator can quickly switch between different modes without the need for complex programming or software.

DIP switches can also be used to activate or deactivate certain features of a device. For example, a printer may have a DIP switch that allows you to turn on or off certain print modes, such as double-sided printing or draft mode. By changing the position of the switches, you can enable or disable certain features as required.

There are many different types of DIP switches available, each with its own unique features and specifications. Some DIP switches have an extended temperature range, making them suitable for use in harsh environments. Others have a high contact rating, allowing them to switch high current loads. There are also DIP switches that are sealed to prevent dust and moisture ingress, making them ideal for use in outdoor applications.

In conclusion, DIP switches are a simple yet versatile electronic component that has been used in a wide range of applications for many years. They provide a quick and easy way to configure a device or system without the need for specialist knowledge or equipment. Whether you're setting the communication settings of a modem, configuring the mode of operation of industrial machinery, or setting the ID of a sensor in a network, you can rely on DIP switches to get the job done.
