TS85 Series Latching illuminated Push Button Switches With 7.5mm Cap

Our TS85 and PB07 series illuminated LED Lights push button switches is latching push button with LED lamp,the TS85 is widely used for the smart appliances ,security equipments and other fields,our TS85 series self locking illuminated push button switches has 7.5*8.5MM outline size and 10MM height,the full travel is 1.6+/-0.4MM and the lock is 1.4+/-0.4mm,and the actuator force is 250gf.

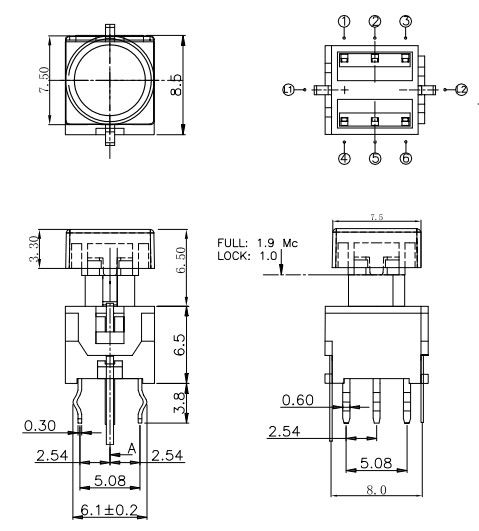

It has clicky sound and colorful LED light options,we provide the minimax cap is round 7.5MM,the dimension size as below.the customized icons on the cap is welcomed.

Illuminated Push On Off Button Switches(图1)
