TS7 Series RGB Illuminated Tact Switch: A Technical Overview for Engineers

The RGB illuminated tact switch is a practical choice when a control panel needs both tactile feedback and clear visual indication.

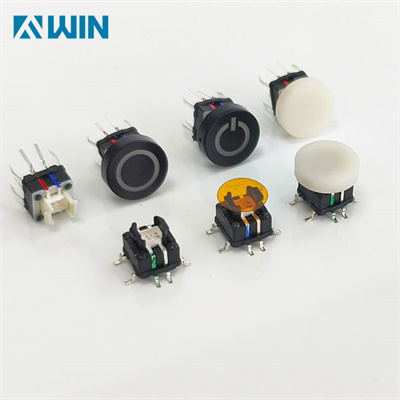

The TS7 Series combines a compact 7×7mm tact switch with LED illumination, giving engineers a simple way to add button feedback without using a separate indicator. Its small size also makes it suitable for PCB layouts where space is limited.

The TS7 Series is designed for PCB applications and is available with through-hole and surface-mount options. The 7×7mm body provides a compact footprint while leaving enough space for a button cap. Different LED configurations can be selected depending on the required indication. Single-color, bi-color and RGB LED options allow the same basic switch design to be used for different control functions.

For engineers, the LED is not simply a decorative feature. It can indicate power, operating status, mode selection or an active function. An RGB version can display several states with different colors, which is useful when a control interface needs to provide information at a glance.

1. What Should Engineers Check?

When choosing an RGB illuminated tact switch, several details should be checked before finalizing the PCB design. Size and mounting type are important, but operating force, travel, electrical rating, LED voltage and brightness also affect the final user experience.

The button cap is another point worth checking. The TS7 Series can be supplied with a 10mm round cap, providing a larger pressing surface while keeping the switch body compact. Engineers should also consider the cap height and the available space above the PCB to make sure the finished assembly fits the enclosure.

For production, consistent tactile feel and stable LED performance are important. A switch that feels different from unit to unit can affect the overall quality of a control panel, especially when many buttons are used together. Sample testing before mass production is therefore a useful step.

2. Applications and Purchasing Value

The TS7 Series can be used in audio equipment, control panels, communication devices, test instruments and other electronic interfaces. RGB illumination is particularly useful where users need to recognize different operating modes quickly.

For buyers, having through-hole and surface-mount options can make the product easier to match with different PCB assembly processes. OEM and ODM support can also help when a standard switch needs a specific LED configuration, cap or button design.

If you are looking for an RGB illuminated tact switch that combines compact size, tactile operation and multi-color indication, the TS7 Series is worth considering for your next PCB design. Contact FVWIN for specifications, samples and technical support.
