ILLUMINATED TACT SWITCH

  • Red-Blue LED Tact Switch
  • Red-Blue LED Tact Switch
Red-Blue LED Tact Switch Red-Blue LED Tact Switch

Red-Blue LED Tact Switch

Red-Blue LED Tact Switch(图1)TS8 series illuminated tact switch.pdf

illuminated Tactile Button With built-in Light LED

illuminated Tactile Button With built-in Light LED(图1)

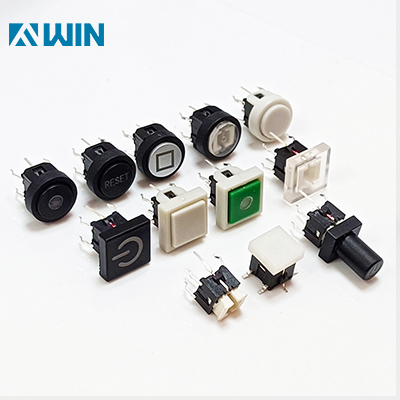

The TS8 series illuminated tact switch is a tiny led tactile button that save board space with built in superbright LED,the illuminated tact button has multiple cap and that caps enhance the size of the illumination,

TS8 series illuminated tact switch is a small momentary LED tactile switches push button,6*6mm with 6 legs (the 4 terminals for 6mm tact switch, and the other two pins is cathode and anode of the led).

Model:TS8-0000X1

illuminated Tactile Button With built-in Light LED(图2)

illuminated Tactile Button With built-in Light LED(图3)

LED SPST PCB Tactile Button Switches(图1)

illuminated Tactile Button With built-in Light LED(图5)

•Bright LED of single,dual colors available and full illumination

•Mini body for mounting in tight spaces

•snap-action contact mechanism

•Multiple cap icon options or customized request icon

•sharp click feeling,easy to mount

illuminated Tactile Button With built-in Light LED(图6)

Our illuminated tact switch is widely used for audio modular,monitor,MIDI controllers,radiator laser synthesizer,hand-held music computer,analog synthesizer,sequencer,modular synthesizer system,modular audio mixing console,marine electronics equipment,music instruments,Amplifiers,stereo effect mixer,Amp switcher.

illuminated Tactile Button With built-in Light LED(图7)

illuminated Tactile Button With built-in Light LED(图8)

Fvwin LTD was established in 2013 as a high-tech company specialising in electronics switches

Headquartered in Guangdong., China, Fvwin Electronics is one of the world's leading manufacturers of electronics component with a focus on the home appliance, medical,industrial and security markets, as well as switches for automobile, eg for .


illuminated Tactile Button With built-in Light LED(图9)
