Illuminated White LED Tact Switch

TS8 series illuminated tact switch.pdf

Illuminated SMD Tact Switches With White Led

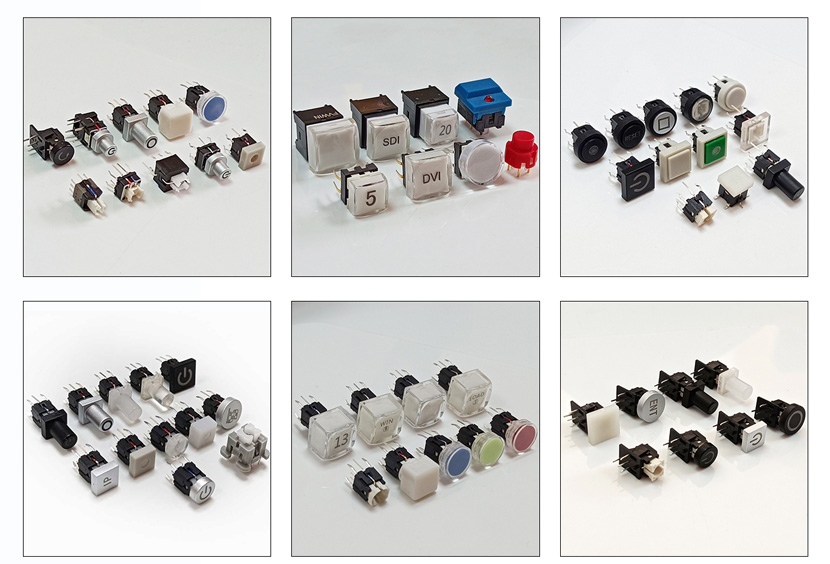

TS8 series illuminated tact switch is a small 6mm momentary surface mount type tactile switches with built in white LED, the 6*6mm push button with 6 legs (the 4 terminals for 6mm tact switch, and the other two pins is cathode and anode of the led);

the illuminated SMD tact switch is convenient for bulk mounting,but it cann't resist the high temperature,if you have to choose the SMD style tact switch with incorporate LED lighted,you must control the soldering temperature below 245℃，or the temperature will damage the LED leads that cann't be lighted.

• Achieve design flexibility with low or high intensity LED indicators available in 8 color options

• Save board space with integrated superbright LED

• Enable ease of use with tactile and audible feedback

• Designed to fit your specific application with a wide range of actuation forces available

• Caps enhance the size of the illumination

• Caps offer an easy type of actuation of the existing switch
