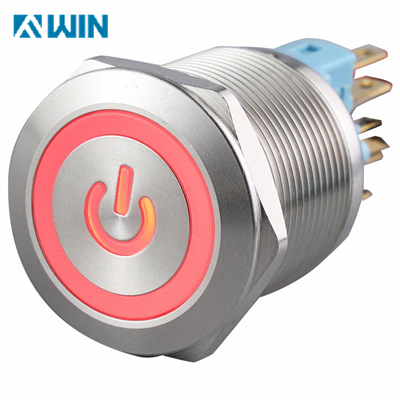

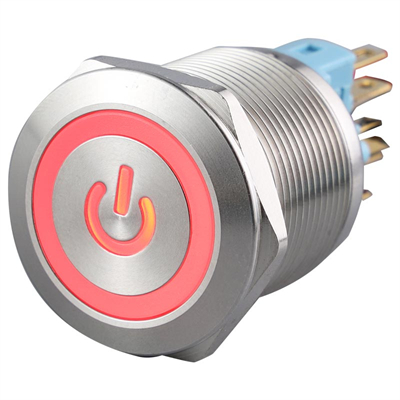

Metal Push Button Switch with Power LED MS22

The LED Power Metal Push Button Switch features a 22mm panel cut-out, metal construction, and power LED indication for clear and reliable equipment control.

Product Introduction

The 22mm LED Power Metal Push Button Switch is designed for control panels that need both a mechanical push button and a visible power indication. Its metal construction provides a solid external structure, while the integrated power LED makes the button easy to identify during equipment operation.

With a 22mm cut-out size, this switch can be installed directly into suitable control panels, cabinets, and equipment housings. The power LED can be used to indicate the operating or power status of the connected equipment, helping operators quickly identify the control function.

Depending on the selected model, different head styles, switching functions, LED colors, terminal configurations, and protection ratings may be available. Engineers should select the exact configuration according to the panel design and electrical requirements.

Product Specifications

Specifications may vary by model. Please confirm the exact electrical rating, LED voltage, LED color, IP rating, dimensions, and terminal type before ordering.

Key Features

1. 22mm Panel Cut-Out

The 22mm cut-out size is suitable for a wide range of control panels and equipment housings. It provides enough space for a practical push-button interface while maintaining a simple panel layout.

Before installation, buyers should check the actual panel cut-out, panel thickness, mounting depth, and surrounding component clearance.

2. Integrated Power LED

The built-in power LED provides a clear visual indication without requiring a separate indicator light. It can be used to show whether equipment power is active or to identify a specific operating condition.

Different LED colors and voltage options may be available depending on the product configuration.

3. Solid Metal Construction

The metal housing provides a firm operating surface and is suitable for equipment that requires frequent manual operation. It is commonly used in industrial control panels, commercial equipment, power systems, and other applications where a more durable external button is preferred.

4. Momentary or Latching Function

Different applications require different switching functions.

A momentary version operates while the button is pressed and returns after release, making it suitable for start, reset, trigger, and signal-control functions.

A latching version maintains its switching state after pressing and can be used for power or on/off control.

5. IP Protection Options

For equipment exposed to dust or moisture, selected models can provide IP65 or IP67 protection. This makes them suitable for many industrial and outdoor applications.

The actual IP rating depends on the selected model and correct panel installation. The complete equipment enclosure should also be designed according to the required environmental protection level.

Applications

The 22mm LED Power Metal Push Button Switch can be used in:

1. Industrial control panels

2. EV charging equipment

3. Solar and renewable energy equipment

4. Power control systems

5. Automation equipment

6. Control cabinets

7. Outdoor electrical equipment

8. Commercial machinery

9. Access control equipment

10. Electronic equipment

For new energy and outdoor applications, buyers should pay particular attention to the switch's IP rating, LED voltage, electrical load, installation space, and operating function.

About FVWIN

FVWIN is a manufacturer of electronic switches and connectors, supplying metal push button switches, illuminated tact switches, DIP switches, DC power jacks, and other electronic components.

FVWIN provides different configurations for industrial, commercial, new energy, and electronic equipment. OEM and ODM support is available for requirements such as mounting dimensions, LED indication, button design, wiring, and product marking.

Samples and technical specifications can be provided for engineering evaluation before volume production.

FAQ

Q1: What is the cut-out size of this LED power button?
A: This model is designed for a 22mm panel cut-out. Please check the product drawing for the exact mounting dimensions.

Q2: What is the function of the LED?
A: The integrated LED is mainly used as a power or status indicator, allowing operators to see the equipment condition more easily.

Q3: Is the switch momentary or latching?
A: Both configurations may be available depending on the model. Please confirm the required function when selecting the switch.
