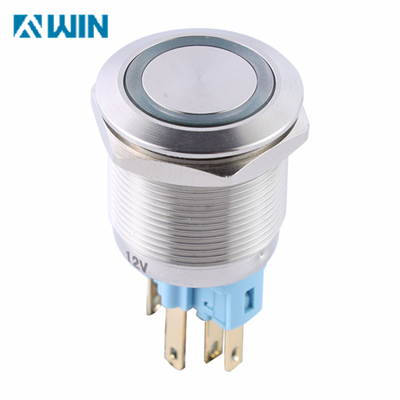

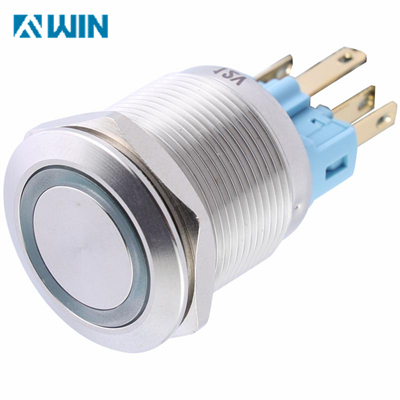

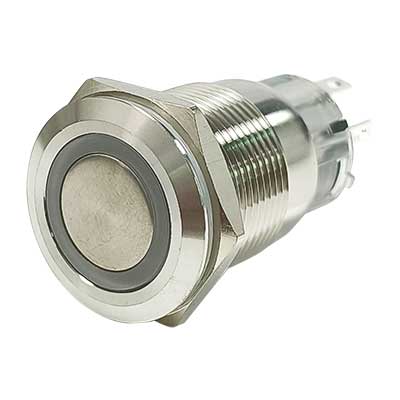

LED Metal Push Button Switch MS22

22mm metal button switch with ring LED indication for clear and reliable panel control.

Product Introduction

The 22mm Ring LED Metal Button Switch is designed for equipment that needs both mechanical switching and visible status indication. The metal construction is suitable for control panels where a stronger button structure and a clean panel appearance are required.

The 22mm mounting size makes it suitable for a wide range of industrial and commercial equipment. The ring LED around the button can be used as a power, operating, or status indicator, helping users identify the switch condition more easily.

Depending on the model, the switch can be available with different button shapes, LED colors, operating functions, and terminal configurations. Momentary and latching options can be selected according to the control circuit. Before ordering, engineers should confirm the mounting hole, electrical rating, switch function, LED voltage, and terminal type.

Product Specifications

Key Features

1. 22mm Panel Mounting

The 22mm mounting size is suitable for many control panels and equipment housings. Before installation, check the actual panel cut-out and mounting thickness to ensure a proper fit.

2. Ring LED Indication

The LED ring provides a visible indication around the button. It can be used to show power status, operating status, or other control conditions. Different LED colors can be selected depending on the application.

3. Metal Construction

The metal housing provides a solid button structure for equipment that is frequently operated. It is suitable for industrial control panels, commercial equipment, and other applications where the switch may be exposed to regular manual operation.

4. Different Switching Functions

Depending on the selected model, the switch can be configured as momentary or latching. Momentary versions return to their original position after release, while latching versions maintain the switching state until pressed again.

5. Suitable for Panel Control

The switch is designed for direct panel mounting and can be used where both physical switching and visual indication are required. This helps reduce the need for a separate indicator in some equipment designs.

Common Applications

The 22mm Ring LED Metal Button Switch can be used in:

Industrial control panels, Electronic equipment, Automation equipment, Commercial machines, Access control equipment, Audio and professional equipment, Vending and self-service machines, Power control systems, Custom control cabinets

About FVWIN

FVWIN is a manufacturer of electronic switches and connectors, supplying metal push button switches, illuminated tact switches, DIP switches, DC power jacks, and other electronic components. We provide standard products as well as OEM and ODM support for different equipment requirements. Product specifications and samples can be provided for engineering evaluation before volume production.

FAQ

Q1: What is the mounting size of this metal button switch?
A: This series is designed for a 22mm panel mounting size. Please confirm the required panel cut-out with the specific model drawing before installation.

Q2: What is the function of the Ring LED?
A: The ring LED is mainly used for visual indication, such as power, operating, or status indication.

Q3: Is the switch momentary or latching?
A: Different configurations are available depending on the model. Please confirm the required switching function when selecting the product.
