ILLUMINATED TACT SWITCH

Right Angle LED Tactile Switch

View PDF materials

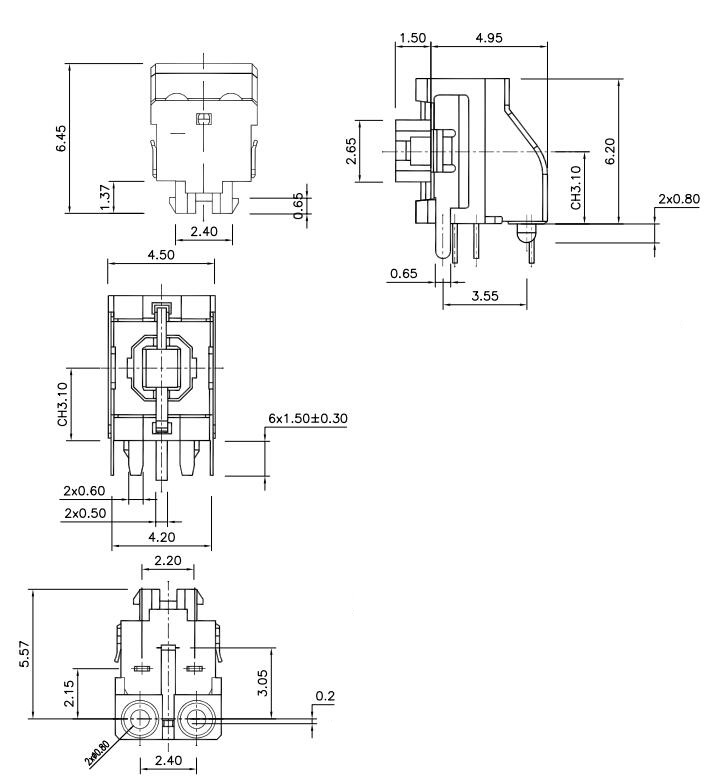

Illuminated Right Angle In-built Tact Switch(图1)

The 6.2x4.5mm right-angle LED tactile switch is a specific type of tactile switch designed for electronic applications where a momentary switching action, tactile feedback, and illumination are required. Let's break down the key features and characteristics of this switch:

Size: The dimensions of the switch are 6.2mm in length and 4.5mm in width, making it a compact component suitable for applications with space constraints.
Right-Angle Design: The "right-angle" designation refers to the orientation of the switch's actuator or button. In a right-angle tactile switch, the actuator is perpendicular to the surface of the PCB (Printed Circuit Board), allowing for ease of access and operation.
LED Illumination: This tactile switch is equipped with a built-in LED (Light-Emitting Diode) for illumination. LED color options may include red, green, blue, or other colors, and the illumination can serve as a visual indicator or backlight.

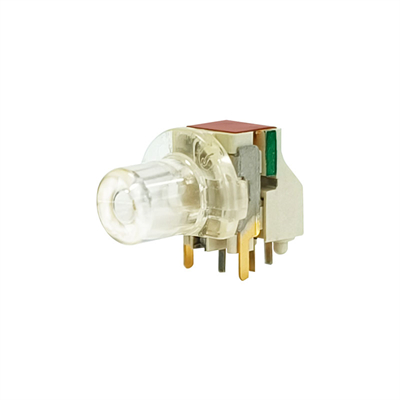

Illuminated Right Angle In-built Tact Switch(图2)
