Illuminated Push Button Switches

12*12 illuminated Tact Button

View PDF materials

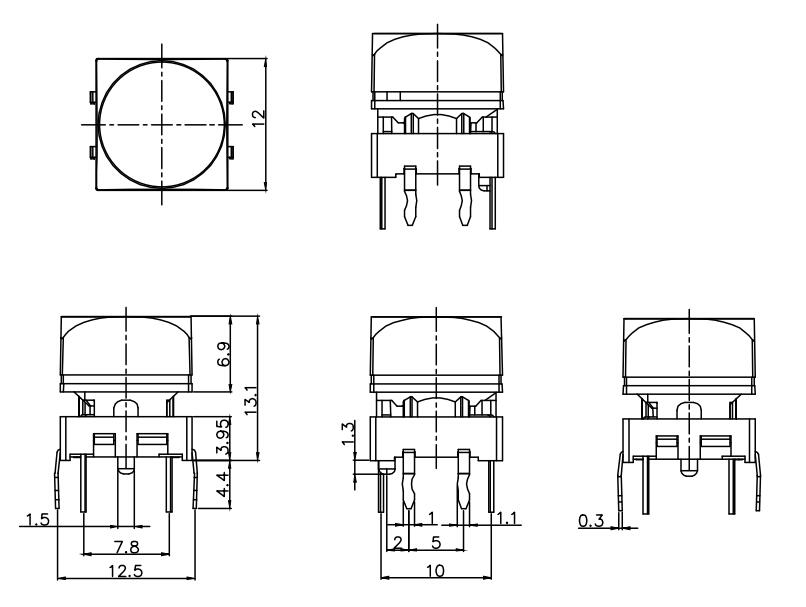

PCB Illuminated Tact Push Button Switch(图1)

This is our TS15 series illuminated push button switch that has wide range applications for broadcasting system and video processors,the cap is sculptured and concave,it provides 12x12mm and 15x15mm cap options,the icons has two ways,insert film and engraved the icons on the cap.

The TS15 series illuminated control panel button is RoHS compliant and features a contact rating of 12V DC at 50mA.a maximum contact resistance of 100mOhm and operation temperature range of -20°C to +70°C.

The crystal LED illuminated tact push button features an actuation force of 1.6N and offers user a tactile feeling feedback when pushed it.The TS15 series illuminated push button switch is available with tape and reel packing to avoid the scratch the cap surface.

PCB Illuminated Tact Push Button Switch(图2)
