ILLUMINATED TACT SWITCH

  • LED Right-Angle Illuminated Tact Switch
  • LED Right-Angle Illuminated Tact Switch
  • LED Right-Angle Illuminated Tact Switch
LED Right-Angle Illuminated Tact Switch LED Right-Angle Illuminated Tact Switch LED Right-Angle Illuminated Tact Switch

LED Right-Angle Illuminated Tact Switch

Right Angle Type Blue Power Reset illuminated Light Button Tactile Switches

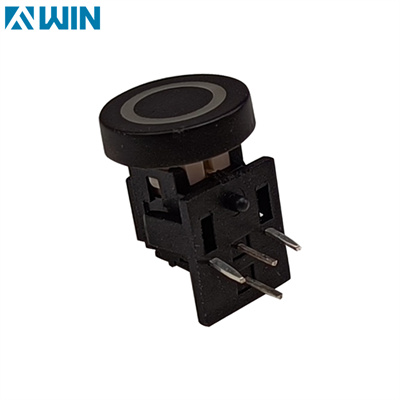

LED Right-Angle Illuminated Tact Switch(图1)

TS20 series illuminated tact switches comes with high bright LEDs that are able to meet customization requirements. With its reduced space usage on board; the TS20 series LED momentary tact switch is perfect for network infrastructure, automotive and medical applications.

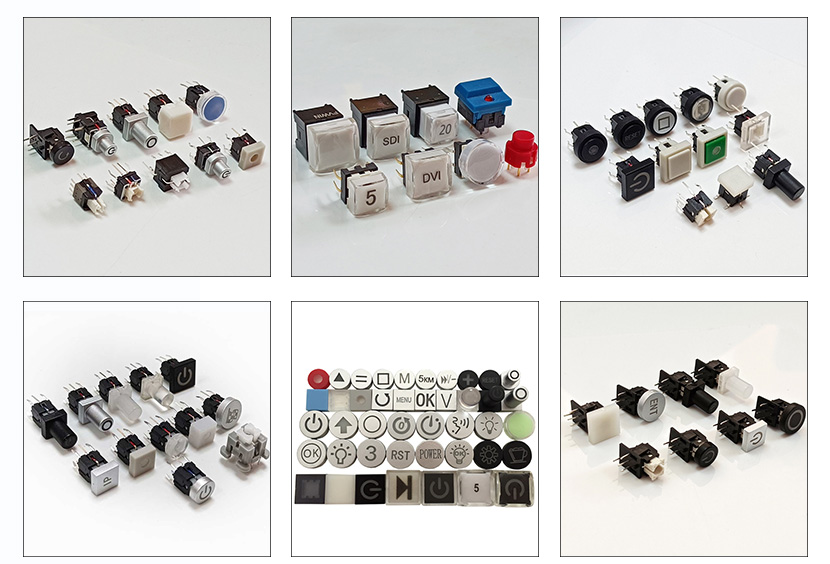

LED Right-Angle Illuminated Tact Switch(图2)

LED Right-Angle Illuminated Tact Switch(图3)

LED Right-Angle Illuminated Tact Switch(图4)

  • Clear tactile feedback and good hand feeling

  • Low and high intensity LED indicators selection

  • Snap-in contact mechanism

  • Tiny size is convenient for mounting and save the install space.

  • Customized symbols on the cap

  • Single or bi-color led available

LED Right-Angle Illuminated Tact Switch(图5)

LED Right-Angle Illuminated Tact Switch(图6)

LED Right-Angle Illuminated Tact Switch(图7)

1. Purchasing the raw material and dome after inspection

2. Making the plastic injection into the switch base

3. Hardware punching to terminal

4. Electroplate the terminal

5. Assembling the parts-mount the LED-torsion the led terminal-match the cap,if you wanna the engraved cap,we need to print it in black or silver and then etched the icons on the cap.

6. Inspecting all and pack it.
