PCB Mount Illuminated Vertical Tact Switches

TS9 series illuminated tact switch.pdf

Illuminated 6x6 Tact Through Hole Switch

It's a through hole 6X6mm illuminated tact switch with high cylinder transparent tactile cap,A illuminated tactile switch is a switch whose actuation is perceptible by touch,and it’s lighted by colorful led indicators,LED-illuminated Tact switches are commonly used in many consumer electronic devices. They have a small footprint and come in many sizes and gram forces.

Model NO: TS9-00TWR

Certification: ISO, RoHS

Switch Type:Illuminated Tactile Switch

Current: 50mA

Voltage :12VDC

Function:off-(on)

Size:6X6 mm

LED Color: Red/Green/Yellow/Blue/White

Button Color: Blue/Green/Yellow/Transparent/Red

Free Sample: Available

Electrically Life: 50, 000cycles

Protection Level: NON

Transport Package: 500PCS of a bag

HS Code: 8536500000

Origin: Dongguan, China

The illuminated tact switches are used in automotive, industrial, medical and consumer products, among other applications.

We've take participated in Electronica China in 2020 and 2021at Shanghai,we showed our illuminated tact switch and led push button switch for customers and got good reputation from them.

 Fvwin Electronics switch is a leading manufacturer established in 2013.we provides high quality, high precision switches and product design, tooling, injection molding technology;

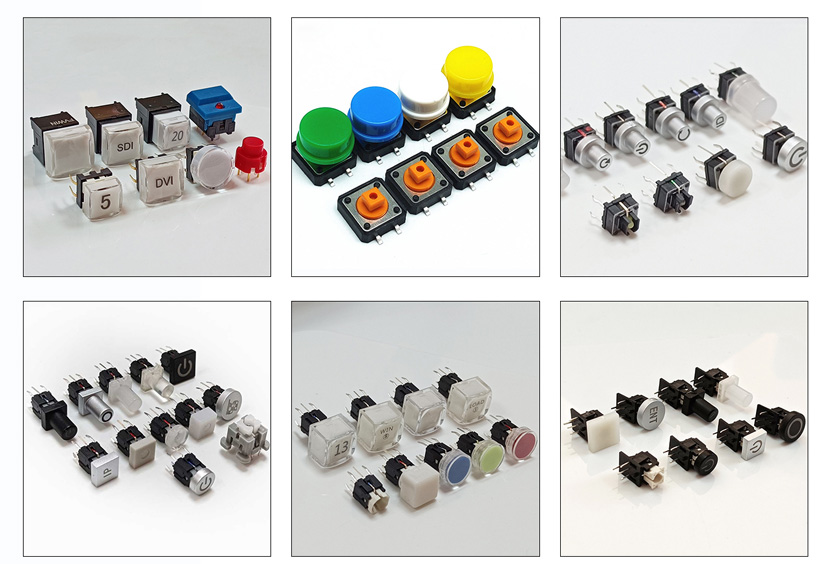

 FVwin's products, including illuminated push button switch, LED tact switches, waterproof switches, metal buttons switches,DC JACK and socket, as well as customized etching symbol on cap services;And even more, are all with certified quality approval and earn customer's admiration.
