ILLUMINATED TACT SWITCH

  • Momentary Tactile Switches With Embedded LED
Momentary Tactile Switches With Embedded LED

Momentary Tactile Switches With Embedded LED

Momentary Tactile Switches With Embedded LED(图1)TS9 series illuminated tact switch.pdf

Momentary Tactile Switches With Embedded LED's

Momentary Tactile Switches With Embedded LEDs(图1)

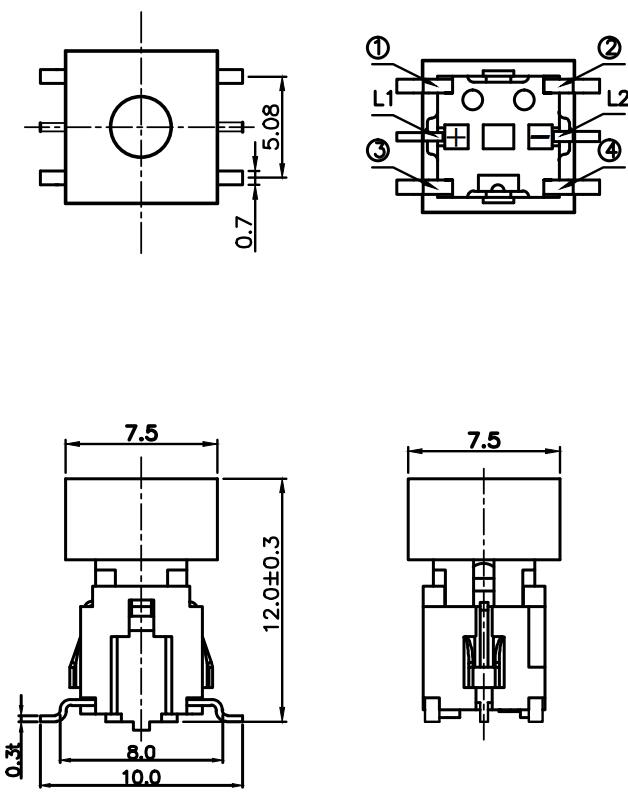

The illuminated tact switch is 6mm tactile switches and can directly snap into a PCB. There are an additional two pins that connect to the anode and cathode of a tiny LED that transmit the illumination to key top cap.besides,there also has 7.5*7.5mm cap

Momentary Tactile Switches With Embedded LEDs(图2)

Brand:FVWIN

Model:TS9-0052WR

Switch Type:Illuminated Tactile Switch

Function: Momentary

Electrically Life: 50, 000cycles

LED Color:Red/Blue/Green/White/Orange/Bi-color

Button Color: Blue/Green/Yellow/Transparent/Red

Momentary Tactile Switches With Embedded LEDs(图3)

PCB Mounted LED Switch Button
