Illuminated Tact Switches

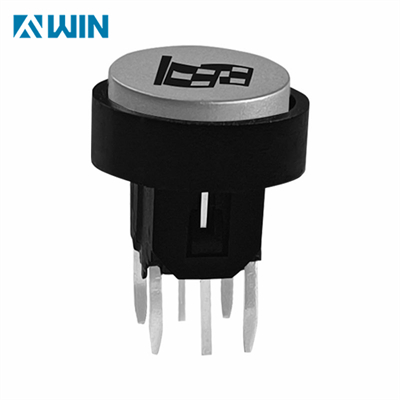

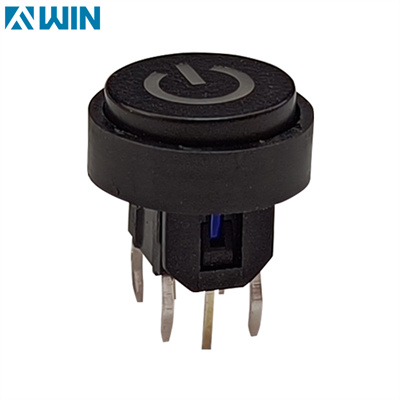

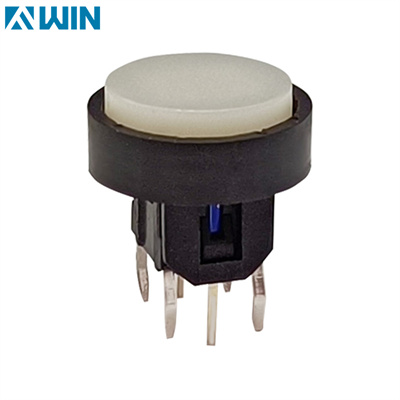

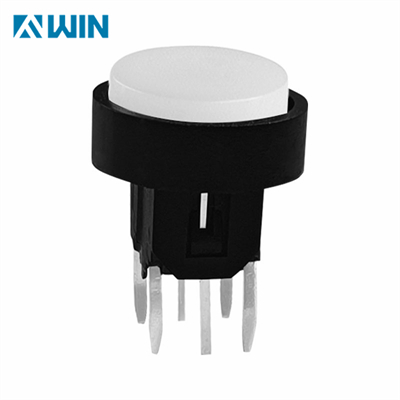

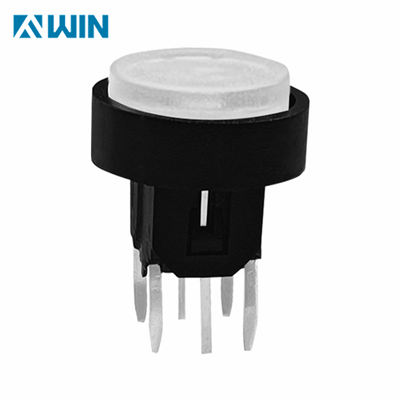

  • 12mm LED illuminated Tact Switch With Power Symbol
  • 12mm LED illuminated Tact Switch With Power Symbol
  • 12mm LED illuminated Tact Switch With Power Symbol
12mm LED illuminated Tact Switch With Power Symbol 12mm LED illuminated Tact Switch With Power Symbol 12mm LED illuminated Tact Switch With Power Symbol

12mm LED illuminated Tact Switch With Power Symbol

12mm LED illuminated Tact Switch With Power Symbol

Diameter 12.8mm Illuminated tact switch with silver plated contacts and measuring 12*10 mm, tactile switches are fit for control panel reset buttons.

Vertical illuminated tact switch combines consistent LED light output with tactile response, clear audible feedback, and a choice of backlighting colors. The illuminated tactile button switch are widely used for automotive, network, telecommunication, medical, and industrial control equipment.


Brand:FVWIN

Model:TS9-5B7BX1

Rating: DC 12V 50mA

Total Travel: 0.25+/-0.1mm

Product Type: Tact Switch

Function: Momentary

LED Color:Red/Blue/Green/White/Orange/Bi-color

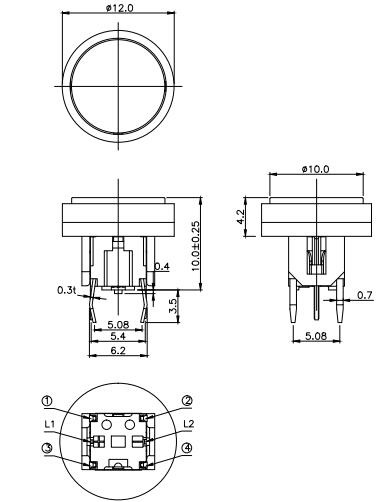

Dimension

LED Light Tact Switch With Symbol Cap
