ILLUMINATED TACT SWITCH

Illuminated Button Tactile Switch Built-in LED

View PDF materials

Illuminated Button Tactile Switch Built-in LED(图1) TS9 series illuminated tact switch.pdf

Mini Illuminated Momentary Button Tactile Switch Integrated Built-in LED

it's a tiny 6*6mm tact switch with clear ball and cylinder cap button,that tactile switch has built into red LED light,

This Illuminated Momentary LED switch is a tiny tact switch that has a integrated built-in LED,the LED has Red, Yellow, Green, Blue, White,Bi-color options

Illuminated Button Tactile Switch Built-in LED(图2)

Brand:FVWIN

Model:TS9-0012WR

Rating: DC 12V 50mA

Total Travel: 0.25+/-0.1mm

Terminal: Right angle,SMD,Through-in

Tactile Switch Size:6*6*9mm

Product Type: Tact Switch

Function: Momentary

LED Color:Red/Blue/Green/White/Orange/Bi-color

Illuminated Button Tactile Switch Built-in LED(图3)

Button with build-in LED

Illuminated Button Tactile Switch Built-in LED(图5)

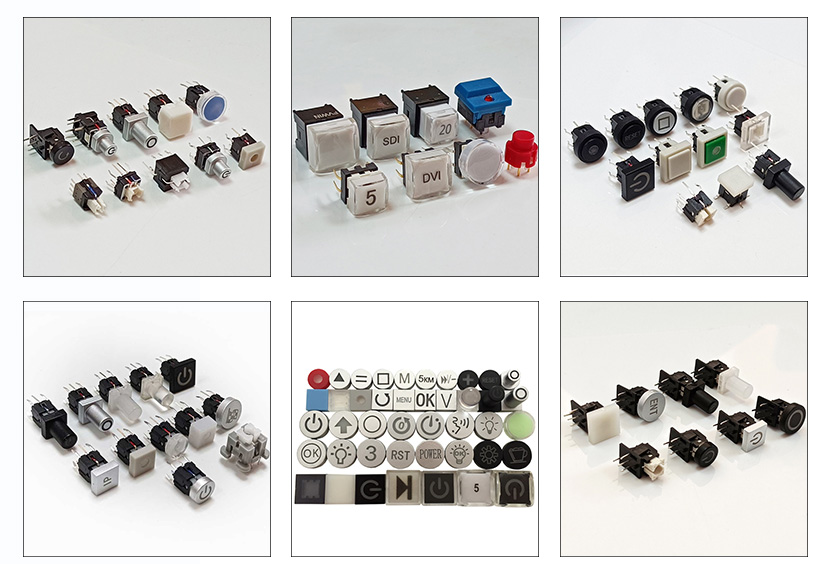

FVWIN’s featured products covers illuminated tact switches,led tactile switch,illuminated push button switches,rocker switch,toggle switch and sockets.the high quality gets good reputation from clients.

Illuminated Button Tactile Switch Built-in LED(图6)
