What is The Right Angle Tact Switch with Led

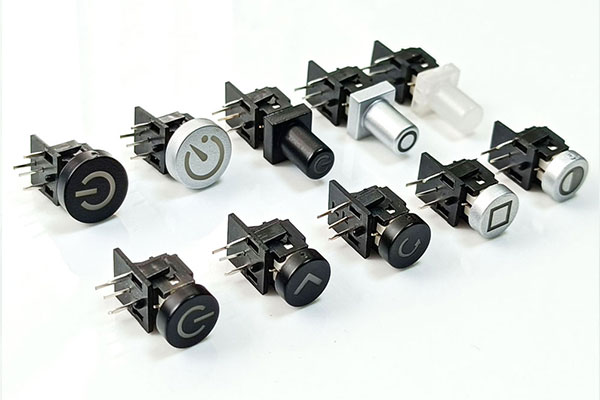

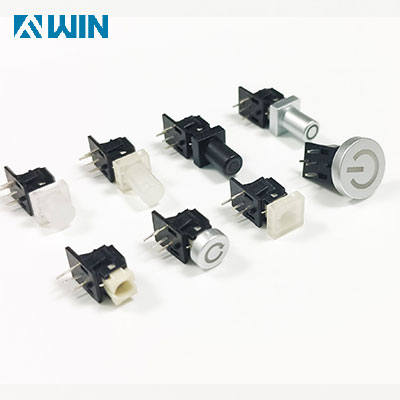

A right angle led tact switch is a compact tactile switch designed with its terminals positioned at a 90-degree angle to the PCB.

It combines the basic function of a tact switch with an LED indicator, allowing the switch to provide both tactile feedback and visual indication. When the button is pressed, the switch creates a momentary electrical connection, while the LED can show the operating status or help users locate the button in low-light conditions.

This type of switch is useful when the available PCB space is limited or when the switch needs to be operated from the side of a control board. Compared with a standard vertical tact switch, the right-angle structure gives designers more flexibility in the position of the button and can work well with front panels, compact control interfaces and space-limited electronic assemblies.

1. Key Features to Consider

When selecting a right angle led tact switch, engineers usually look at more than just the appearance. The switch size, mounting method, operating force, travel, LED color and electrical rating all need to match the application. Common sizes include 6×6mm and 7×7mm, while different cap shapes and heights can be used to achieve the required button position.

The LED is another important factor. Single-color LEDs such as red, green, blue and white are commonly used for simple status indication. Bi-color and RGB versions can provide more visual information when several operating states need to be displayed.

PCB mounting is also important during production. A stable terminal structure helps the switch remain correctly positioned during assembly. For products used in control panels or audio equipment, consistent tactile feedback can also make repeated operation more comfortable.

2. Where Is It Used?

Right-angle illuminated tact switches can be found in audio equipment, control panels, test instruments, security equipment, communication devices and other electronic products. They are especially useful when a side-operated button or visible LED indication is required.

For purchasing teams, choosing the right switch at the design stage can reduce PCB changes and assembly problems later. It is also worth checking sample availability, specifications, LED options and customization support before placing a larger order.

If you need a compact switch that combines tactile feedback, visual indication and flexible PCB installation, a right angle led tact switch can be a practical choice. FVWIN can provide different sizes, LED colors and configurations to help you find a suitable option for your electronic product.
