Rugged Metal Push Button Switch

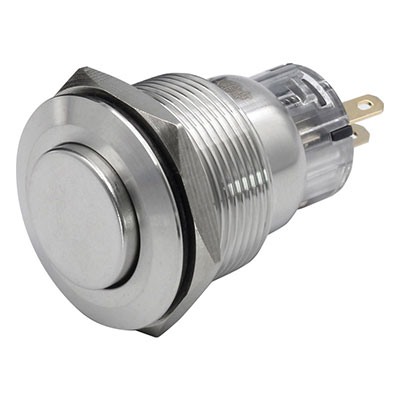

22mm raised metal push button switch is a momentary reset switch designed for control panels that require clear operation, durable construction, and reliable panel mounting.

Its raised head is easy to locate and press, making it suitable for frequently operated buttons such as signal triggers, mode selection, call buttons, and other control functions.

With a 22mm panel cut-out, IP67 protection, and a metal construction, this push button switch is designed for equipment exposed to dust, moisture, vibration, and regular manual operation. The switch is installed from the panel front and secured with a threaded nut, providing a practical mounting method for transportation and marine control panels.

Key Features

1. 22mm panel cut-out for standard panel installation

2. Raised metal head for easy identification and operation

3. Momentary reset function returns to its original position after release

4. IP67 protection for applications requiring resistance to dust and water

5. Wire terminals for flexible connection during panel assembly

6. Threaded nut mounting for secure installation through the panel

7. Metal construction suitable for frequent operation and demanding environments

8. Suitable for control panels where clear tactile operation is important

Basic Specifications

Designed for Transportation and Marine Control Panels

For railway vehicles, buses, ships, and yachts, control buttons may be operated repeatedly throughout the equipment's service life. A raised button can make the operating position easier to identify, especially when several switches are installed together on the same panel.

The 22mm raised metal push button switch can be used for signal triggering, mode switching, passenger or crew call functions, equipment control, and other momentary input operations. Its IP67 protection also makes it suitable for control panels where exposure to moisture, dust, or changing environmental conditions needs to be considered.

For equipment manufacturers, the combination of a raised head, momentary operation, metal construction, and panel mounting provides a straightforward option for control interfaces that need both clear operation and durable hardware.

Why Choose This Switch for Your Control Panel?

When selecting a push button for transportation or marine equipment, buyers typically need to consider more than the electrical switching function. Button identification, operating feel, panel installation, environmental protection, and long-term mechanical use can all affect the final design.

This 22mm model is particularly suitable when the application requires:

• Frequent point-and-press operation

• A clearly visible and easy-to-locate button

• Momentary input rather than maintained switching

• Protection against dust and water

• A durable metal panel component

• Secure front-panel installation

• Integration into railway, bus, ship, or yacht control panels

Typical Applications

The 22mm raised metal push button switch can be used in:

1. Railway vehicle control panels

2. Rail transit equipment

3. Bus control and operating panels

4. Ship control panels

5. Yacht control systems

6. Marine electrical equipment

7. Signal trigger panels

8. Mode selection controls

9. Call and communication buttons

10. Industrial control interfaces

FAQ

1. What is the function of this 22mm metal push button switch?
It is a momentary reset switch. The button operates while pressed and returns to its original position after being released.

2. What does the raised head design provide?
The raised head makes the button easier to identify and locate by touch, which is useful when several control buttons are installed on the same panel.

3. Is this switch suitable for outdoor or wet environments?
The switch has an IP67 protection rating, making it suitable for applications where protection against dust and temporary water immersion is required. The complete equipment design and installation should also provide appropriate environmental protection.

4. How is the switch mounted?
It is designed for front-panel installation and secured with a threaded nut.
