Latching LED Push Button Switches

  • Momentary Illuminated PushButton Switch
Momentary Illuminated PushButton Switch

Momentary Illuminated PushButton Switch

Momentary Illuminated PushButton Switch

Momentary Illuminated PushButton Switch(图1)

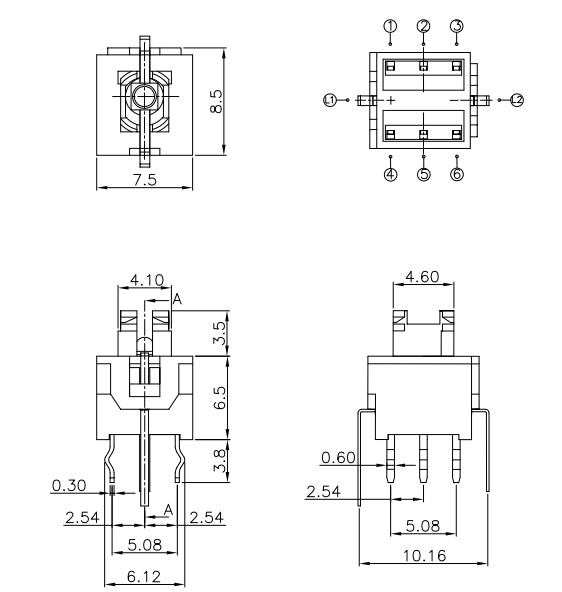

This TS85 series illuminated push button switch has momentary and self locking type options,it measures 7.5 x 8.5 x 10 mm size,there provides with red,green,yellow,orange,blue and white six LED colors options,the latching type is different with momentary version,the momentary function illuminated tact push button has full black base and button,and the latched style is transparent top button and black housing,they are fit for the 7.5mm and 10mm cap selections.

The LED illuminated push button rated at 0.1A and 30VDC,the life expectancy of 10,000 cycles,and the operation force is 150+/-100gf when it’s momentary state,the full travel is 1.6mm.

Momentary Illuminated PushButton Switch(图1)

1. Momentary and momentary function alternative

2. Various of LED colors options,red,green,blue,orange,yellow and white

3. Three styles caps selections

Momentary Illuminated PushButton Switch(图2)

Momentary Illuminated PushButton Switch(图1)

Momentary Illuminated PushButton Switch(图4)

Momentary Illuminated PushButton Switch(图5)Momentary Illuminated PushButton Switch(图6)

Momentary Illuminated PushButton Switch(图7)Momentary Illuminated PushButton Switch(图8)

Momentary Illuminated PushButton Switch(图9)

FVWIN ELECTRONICS supplies the electronics components,our products covers illuminated tact switch,led tactile switch,illuminated push button switch,rocker switch,AC socket and XLR connectors;our items address applications for audio-visual equipment,security equipment,industry equipment,medical equipment and other fields.We are committed to provide excellent price/prior performance to remain one of the strongest pioneers in this evolving market
