Latching LED Push Button Switches

  • Locking illuminated Tact Switches
Locking illuminated Tact Switches

Locking illuminated Tact Switches

Locking illuminated Tact Switches


Model:TS85-0028GX

This is illuminated locking push button tact switches has multiple led colors choices,and we provide the 7.5MM round,10MM square and 10MM cylinder knob for the latching illuminated push buttons ,we also accept to customize icons as your request.

The TS85 Series illuminated push button is rated at 1A 30VDC and available in SPST push on –push off alternate action and a SPDT ON-OFF-ON function. The switches measured with 7.5X8.5MM and can be mounted vertically or horizontally onto a PCB requiring no mounting hardware or can be hand welded,the operating force of the switches is 250gf and the travel is 1.5mm.

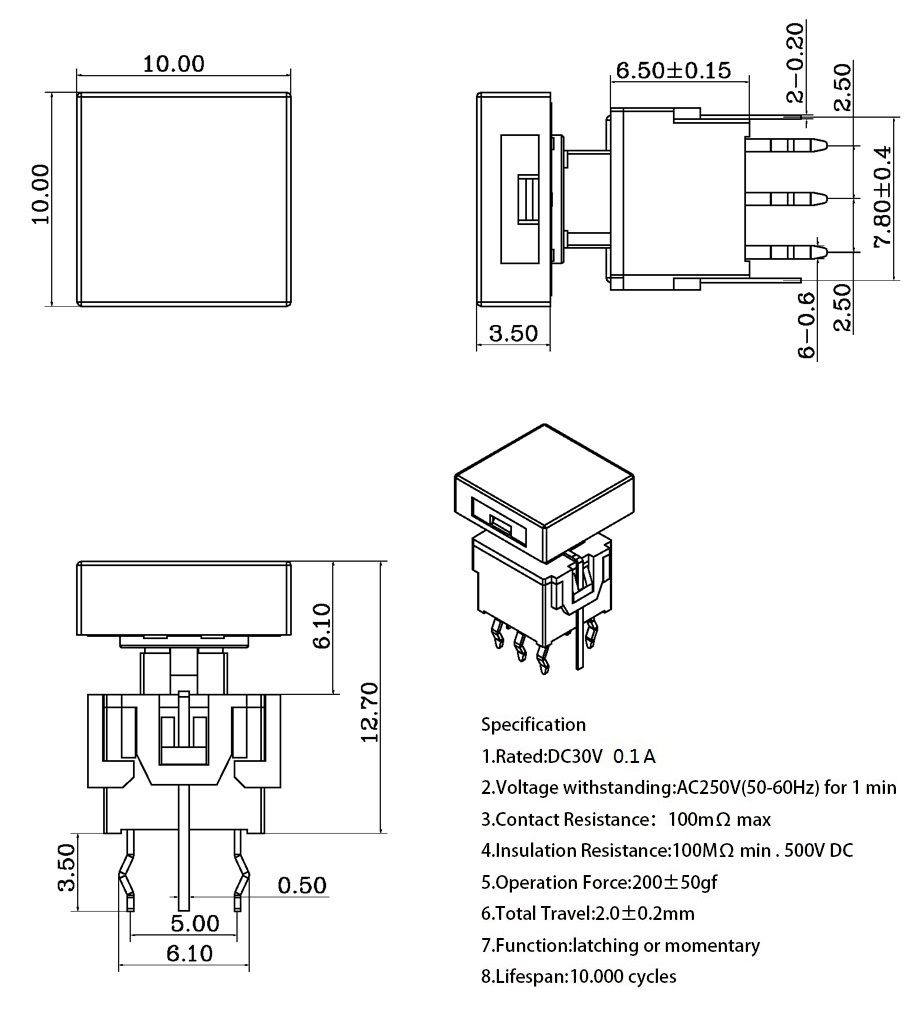

Locking illuminated Tact Switches(图1)


PE bag for no engraved cap

Blister box for illuminated tact siwtch with caps

Tape package for SMT type

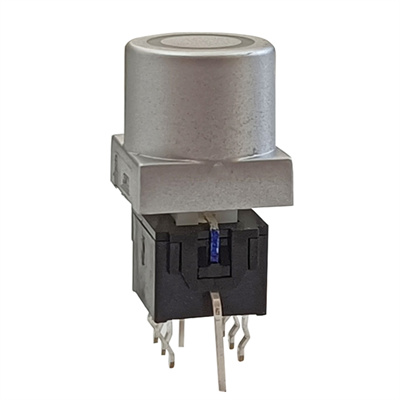

Locking illuminated Tact Switches(图2)
