• 6*6 Waterproof Tact Switch
  • 6*6 Waterproof Tact Switch
6*6 Waterproof Tact Switch 6*6 Waterproof Tact Switch

6*6 Waterproof Tact Switch

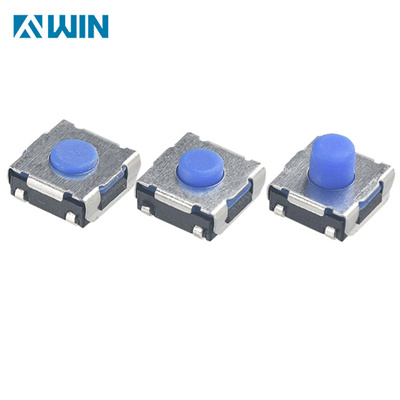

6*6 Waterproof Tact Switch(图1)

This is the 6x6mm PCB mount tactile switch with the low profile design,it has the silicone rubber on the top button,the compact size measures 6.2mm*6.3mm,it offers momentary action in a SPST normally open configuration,the life span is rated up to 100,000 cycles.

There has 3.1mm,3.5mm,4.2mm.5.0mm.5.2mm height option,if you want the customized height,we can make it for customers.
The silicone rubber decrease the button sound feedback,and extend the life expectancy of waterproof tact switch.

It's rated up to IP67 level,so it can meet your product common using.

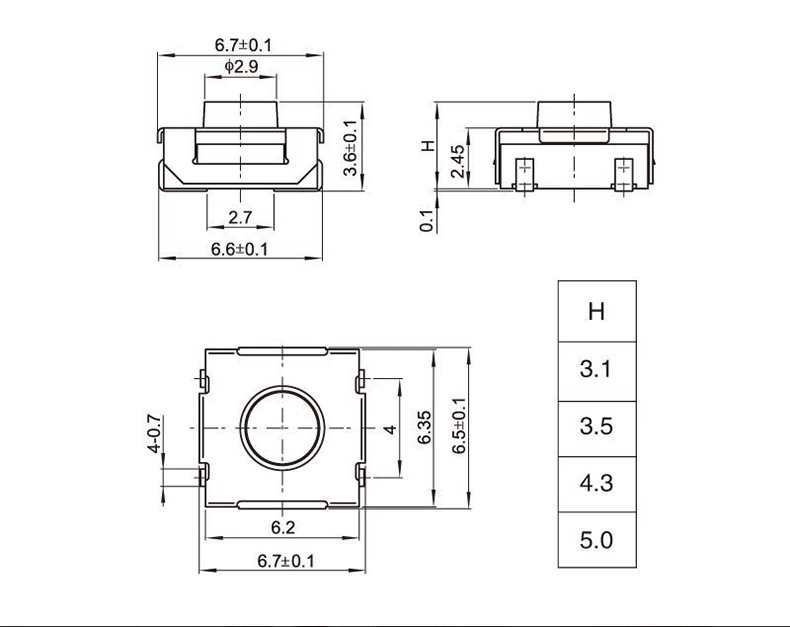

6*6 Waterproof Tact Switch(图2)

Product Name

Waterproof Tact Switch

Product Size


Height Options


Life Span

100,000 cycles

Actuation Force



50mA DC12V

Total Travel

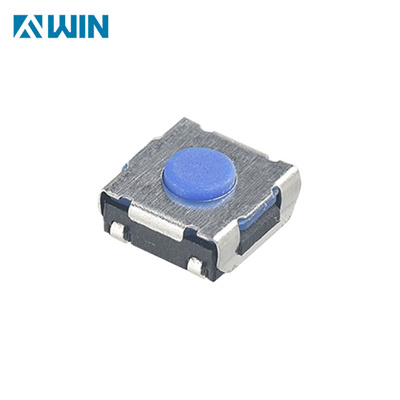

6*6 Waterproof Tact Switch(图3)

6*6 Waterproof Tact Switch(图1)

6*6 Waterproof Tact Switch(图5)

It's widely used for many home appliances,security devices,medical products and other industry equipment ,power tool,as well as office equipment.

6*6 Waterproof Tact Switch(图6)

FVWIN manufactured the illuminated tact switches for 10 years,we’ve entered into Electronica China 2020 and 2021 in Shanghai,during the hall,we displayed the illuminated tact switches and led push button switch for customers at home and abroad.we received many customers and obtains good reputation.

6*6 Waterproof Tact Switch(图7)
