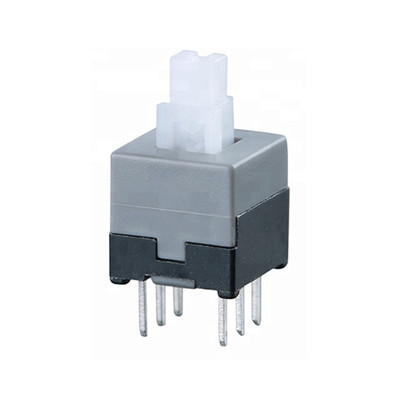

Mini Push Button Switches

  • Tactile Power Micro Switch Self lock Latching
  • Tactile Power Micro Switch Self lock Latching
Tactile Power Micro Switch Self lock Latching Tactile Power Micro Switch Self lock Latching

Tactile Power Micro Switch Self lock Latching

Tactile Power Micro Switch Self lock Latching Toys Flashlight Switch


"6 Pin Push Switch" is also named "Mini Self Locking Push Switch and Mini DPDT Push Switch"

Rating: 0.1A DC30V
Insulation Resistance: ≥100MΩ
Dielectric Strength: AC250V 50Hz /min
Contact Resistance: ≤50MΩ
Operating Temperature: -25℃~ + 65℃
Lifetime: 100000 Cycles
Operating Force: 160 ± 80gf
Temperature: - 40~70°C

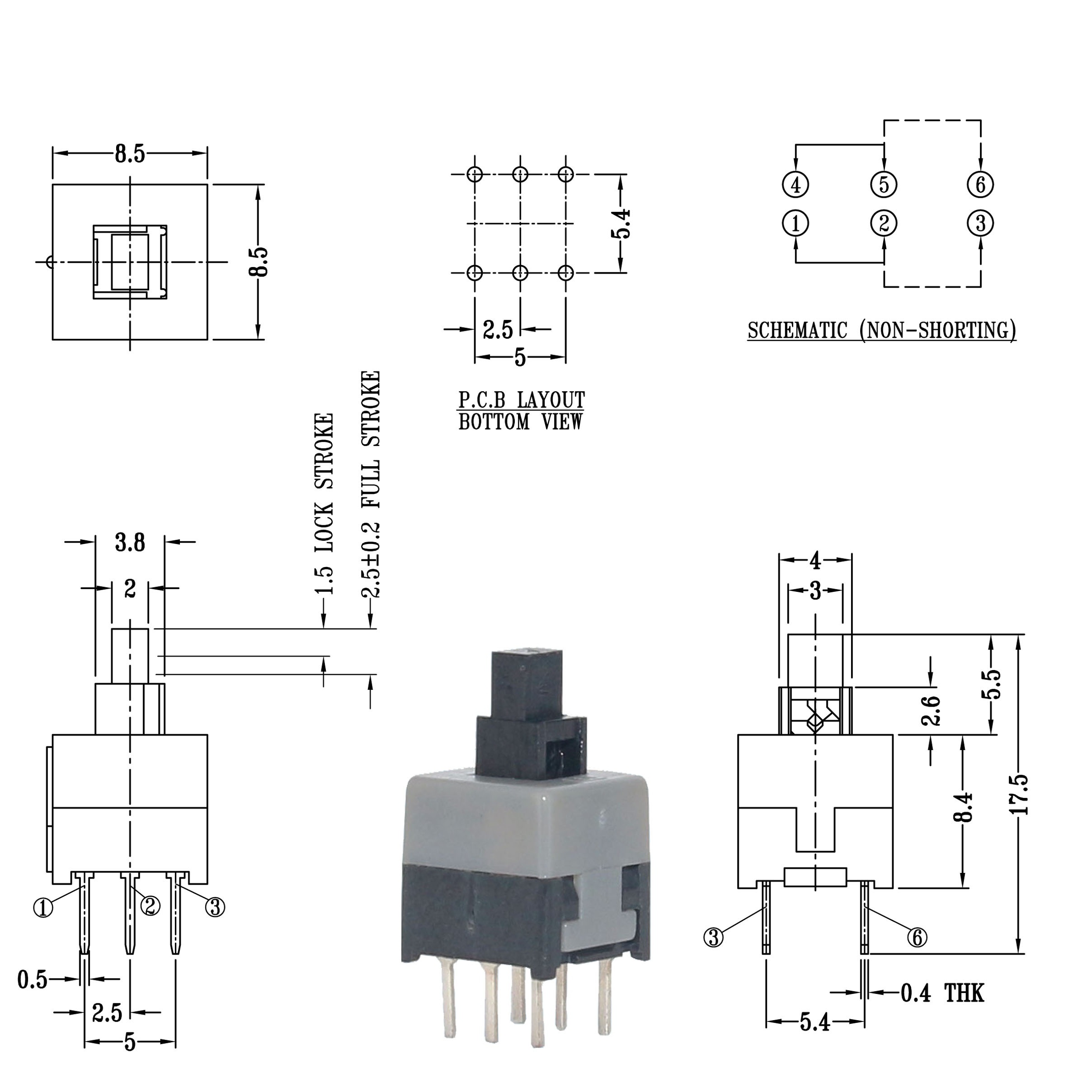

8.5*8.5mm Push Button Switches
