Illuminated Push Button Switches

Illuminated Button Switch For Audio Electronics

View PDF materials

Illuminated Button Switch For Audio Electronics

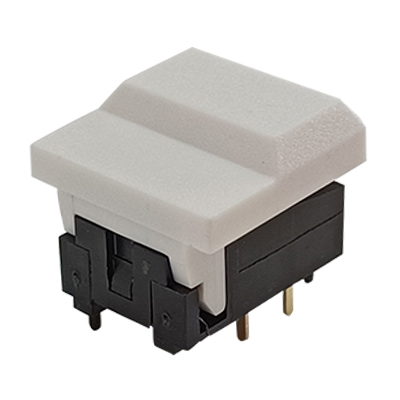

White Cover illuminated Button Switch For Audio Electronics(图1)

This is illuminated push buttons alike the piano button,it has colorful colors and many led lights option,the illuminated button switches is a range wide application for stage lighting console,it has clicky sound and momentary funciton.

White Cover illuminated Button Switch For Audio Electronics(图2)

Model:PB86-A1UGNG

Circuit：SPST

Current rating: 12mA 24VDC

Operating force: 170±50gf

Travel:2.0±0.4mm;

Operating life:50,000 cycles Min;

White Cover illuminated Button Switch For Audio Electronics(图3)

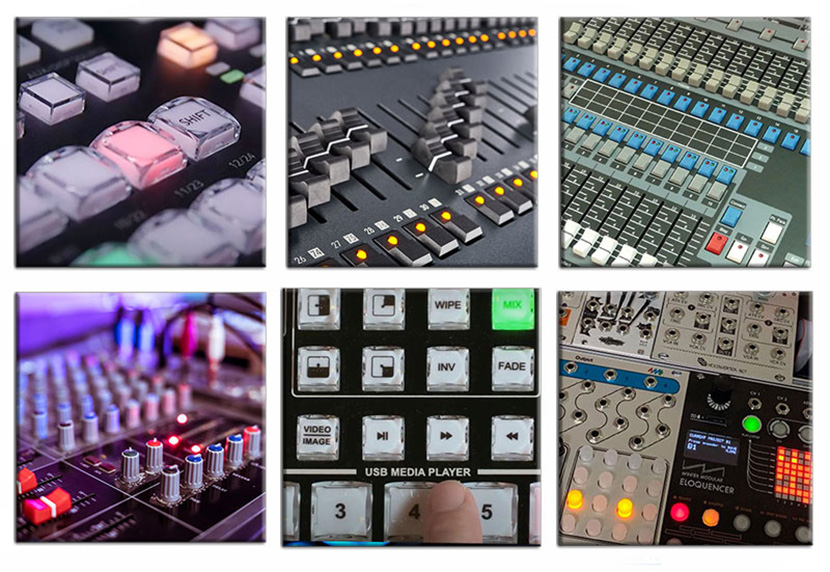

illuminated Push Button For Stage Lighting Console

Illuminated Button Switch For Audio Electronics(图5)

The PB86 series illuminated push button switch has a variety of application for stage lighting console button,control keyboards and other industry control keyboards.

Illuminated Button Switch For Audio Electronics(图6)
