illuminated SMT RGB Tact Switches
The TS9 series of illuminated tact switches with kinds of single and bi-color led offering surface mount(SMD), through-hole mounting, it's a momentary function SPST SMT tactile switch. Available with actuation force of 160 and 250gf and actuator travel of 0.25±0.1mm
The LED tact switch has 6*6mm mini size,it has four pins LED indicators,

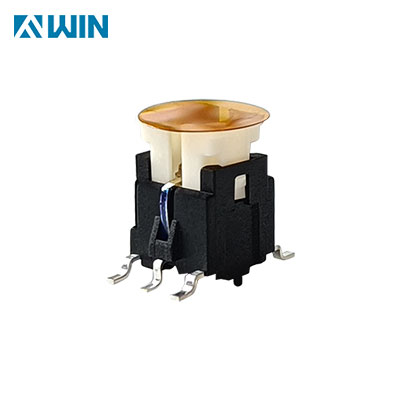

Model:TS9-0000RA
Terminal: Surface Mount
Product Type: Tact Switch

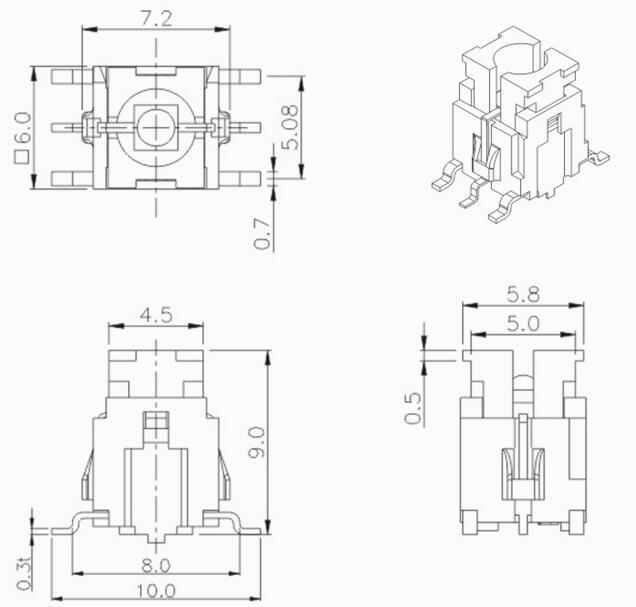

Tactile Switch Dimension:6*6*9mm
LED Color:RED/GREEN/BLUE/YELLOW/WHITE/ORANGE
Funtion:Momentary
No Cap version-PE or Blister Package
Engraved Cap version-Blister Box Package
SMD Type-Reel Package
Fvwin Electronics is a leading manufacturer of illuminated tact switches and LED push button switches,push button switch,rocker switch and other electronics switches to the audio&video ,home appliance,medical,communication and control panel markets.
Fvwin was established in 2013 and is a global leader in the design and development of engineered electronics components for premier OEM electronics switch manufactures.Fvwin’s expertise and innovative design have led to a preferred supplier status among our customers
Q:Do you have the RGB illuminated tactile switches?

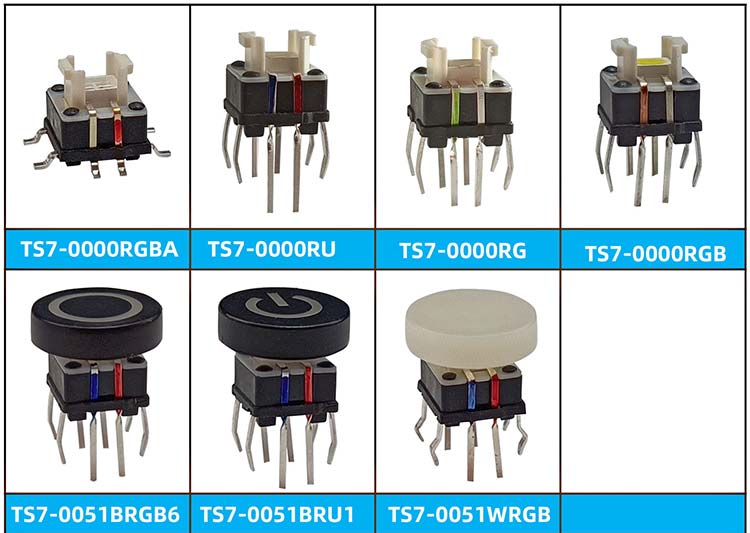

A:yes,our TS7 series illuminated led tact switches has eight terminal,that's a dual LED.
Q:Do you have the bicolor LED tact switches?
A:Our TS7 series momentary illuminated tact switches has three type bi-color LED,red-green/red-blue/red-white dual color LED Light.
Q: what's your TS7 series SMD illuminated tact switches solder method?
A:Advise you sodering ot by manual,'cause it cann't withstand the high temperature.
