Power Metal Push Button Switch MS22

22mm power metal push button switch is a panel-mounted reset switch  for industrial control cabinets and PLC electrical boxes.

Product Introduction

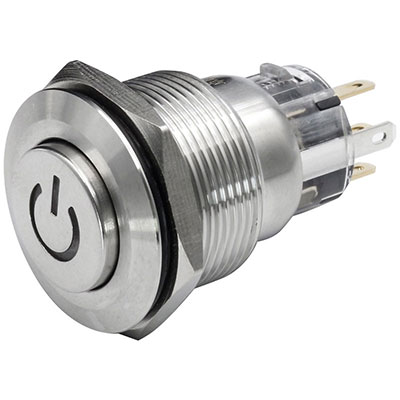

This 22mm metal push button switch is designed for equipment panels where the power control button needs to be easy to identify and simple to operate. The raised head provides a clear operating surface, while the laser-engraved power symbol gives the button a permanent visual mark.

The switch also supports LED indication for applications where operators need to confirm whether the equipment is powered or operating. Depending on the selected configuration, dot or ring LED lighting and common DC6V, DC12V, or DC24V options can be provided.

Product Specifications

Key Features and Selling Points

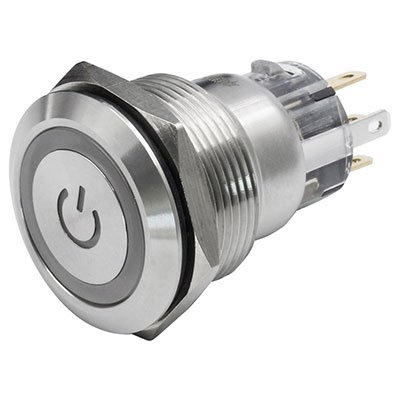

1. Laser-Engraved Power Symbol

A standard power symbol is engraved directly onto the button surface. Unlike a separate sticker, laser engraving provides a permanent marking that is suitable for equipment panels used over a long period.

For PLC control boxes and industrial cabinets, this gives operators an immediate visual reference when identifying the main power control.

It also helps simplify the panel design because manufacturers do not need to reserve additional space for a separate power label.

2. LED Status Indication

The integrated LED provides visual feedback for the equipment status. When the indicator is connected according to the circuit design, operators can quickly check whether the equipment is powered or in the intended operating state.

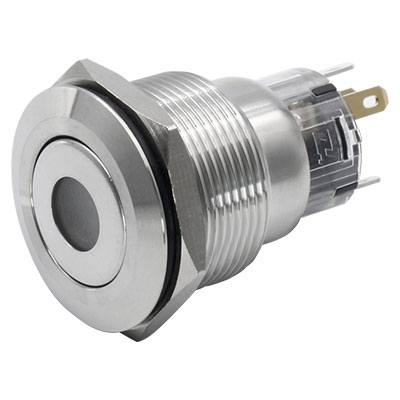

Different lighting configurations can be selected, including dot light and ring light. Common DC6V, DC12V, and DC24V options are available according to the modEl.

This is particularly useful when the control cabinet is installed in a location where the power condition needs to be checked at a glance.

3. Suitable for Frequent Equipment Operation

For equipment where the power control is used regularly, contact quality and mechanical construction are important selection points. The switch can be configured with quality silver contacts to support repeated switching operations.

The actual electrical load and expected service life should be checked against the selected model's specifications before use in a high-frequency switching application.

4. Flexible Terminal and Function Options

FVWIN can provide different configurations according to the control cabinet design, including momentary or latching functions and different terminal arrangements. For customers using different wiring structures across several cabinet models, this makes it easier to select a switch that matches the existing panel and control circuit.

Applications

The 22mm power metal push button switch is suitable for:

1. Industrial control cabinets

2. PLC electrical control boxes

3. Automation equipment

4. Machine control panels

5. Power distribution equipment

6. Industrial machinery

7. Electrical control systems

8. New energy equipment

About FVWIN

FVWIN is a manufacturer of electronic switches and connectors, supplying metal push button switches, illuminated tact switches, DIP switches, DC power jacks, and other electronic components.

For industrial control applications, FVWIN provides different mounting sizes, head styles, switching functions, LED configurations, contact arrangements, and wiring options. OEM and ODM support is also available when customers require specific mechanical or electrical configurations.

Samples and technical specifications can be supplied for engineering evaluation before volume production.

FAQ

Q1: What is the mounting size of this power metal push button switch?
A: This model uses a 22mm mounting hole and is secured to the panel with a threaded nut.

Q2: Is the power symbol printed or engraved?
A: The power symbol is laser engraved on the button surface, providing a permanent marking without requiring a separate sticker.

Q3: Does the switch have an LED?
A: LED indication is available. Depending on the configuration, dot and ring lighting can be selected, with common DC6V, DC12V, and DC24V options.
