Metal Push Button Switch

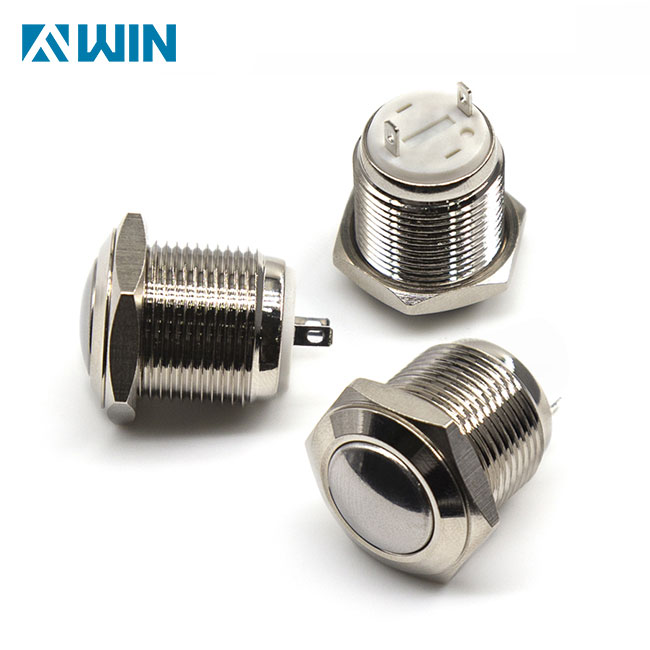

16MM Anti-Vandal Push Button Switch

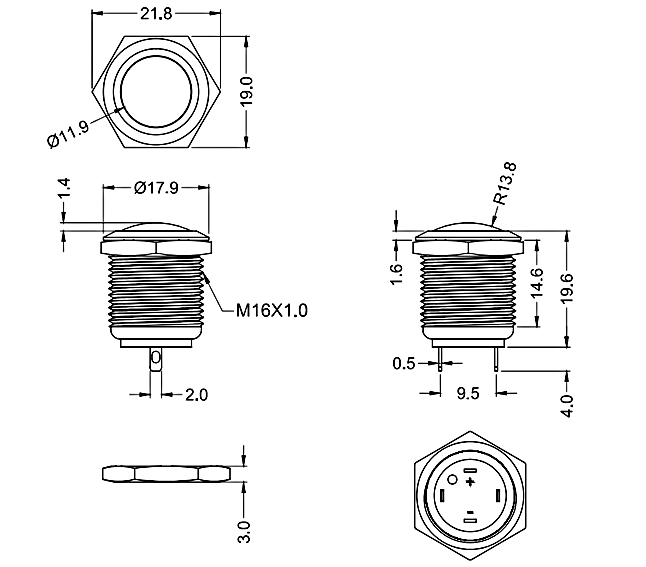

Specifications
Operation Type: Latching/momentary (Push it, ON; Push it again, OFF)
Panel Cutout Diameter: 16mm
Thread Depth: 14.5mm
Total Depth :20.6mm
Faceplate Diameter: 17.9mm
Max Switch Rating: 3A 250V AC
LED rating: 12V DC 15mA
Circuit Type: 1NO1NC
Switch Type: SPDT (Single Pole, Double Throw)
Enclosure Material: Stainless Steel
Protection Level: IP67
Operation Temperature: -20℃ to 80℃
Features
1. High corrosion resistance with sealed to IP65, IP67
2. illuminated & non-illuminated with power backlit symbol options
3. Widely used in any circuit controls
4. Mounting Hole Size: 16mm, Switch Rating: 2A/48VDC, Switch Contacts: 1NO
Applications
Use the illuminated metal push button switch as a power switch for auxiliary LED accent lights on truck beds, boat trims, sailboat masts, and motorcycles, automotive applications, computer accessories, medical equipment, door bell,train system.
