ROCKER SWITCH

21*9.5MM Rocker Switch

View PDF materials

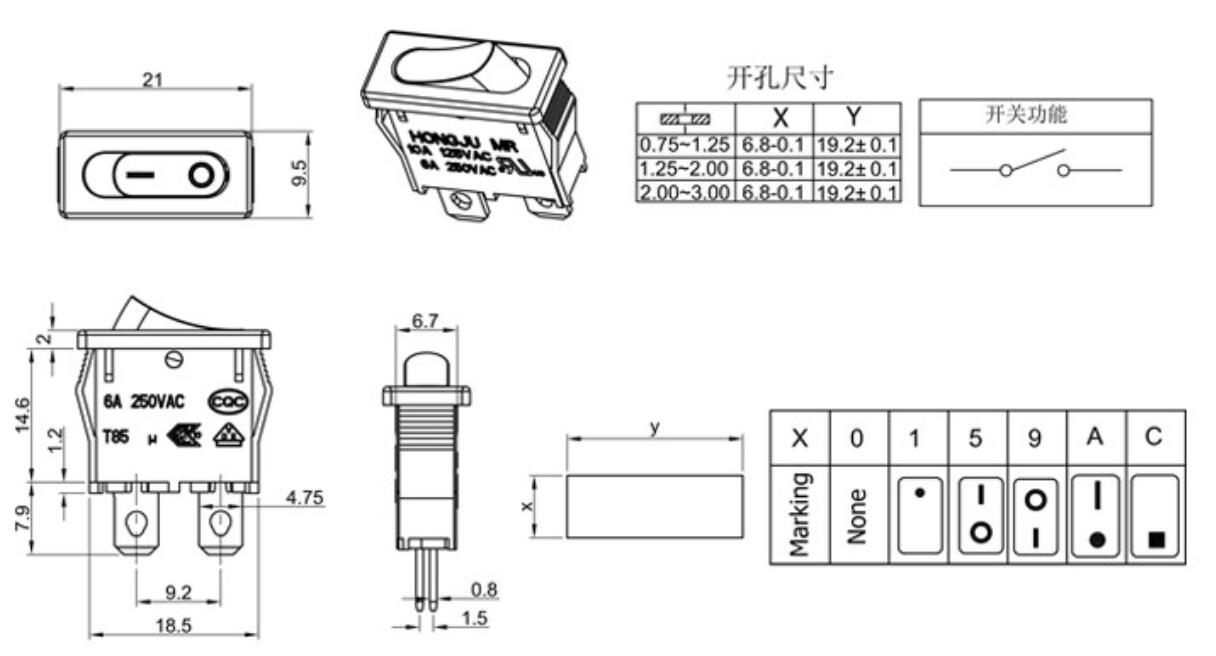

ON OFF 21*9.5MM Rocker Switch

This is cut out size 21*9.5mm rocker switches,it’s a on-off switch.the color of operation button is available with red,black and white as well as green.

Rocker switch is a mini high power capacity power switch for home appliance and office equipment,compare with other switch,the operation force is heavy;the version of rocker switch is also applied to different situations.

Parameters

Product Model	MR-2-110-C5N-BR	Electrical Life	10,000 cycles typical
Electrical Ratings	10A 125VAC, 6A 250VAC	Dielectric Strength	1500Vrms min
Contact Resistance	< 20 mΩ max initial @ 2-4VDC, 100mA	Insulation Resistance	> 100MΩ min
Temperature	-40°C to 85°C	Operating Temperature	-40°C to 85°C
Certifications	UL.CQC.VDE,ROHS	Function	ON-OFF
Cut Out	21*9.5mm	Button Color	Red,white,black
