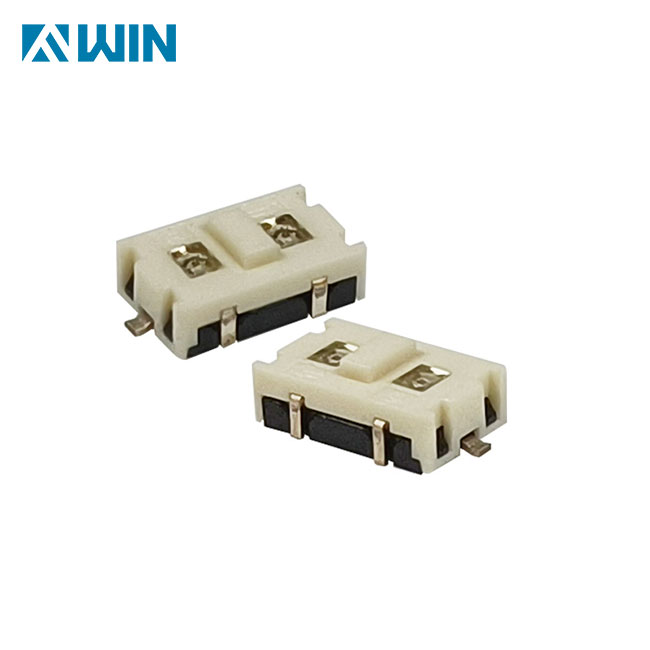

The TS68 Series illuminated tactile switch is SPST and momentary and surface mount in an sub-miniature size. Bi-color illumination color choices are red, green, yellow, blue, white, orange, and pure green. The TS68 series offers dual LED switch.
Electrical Ratings: 50mA @ 12VDC
Electrical Life :50,000 cycles
Contact Resistance :<100mΩ initial
Actuation Force :160 ± 80gF
Actuation Travel :0.2mm
