Momentary Push Button Switches

SPST Momentary Push Button

View PDF materials

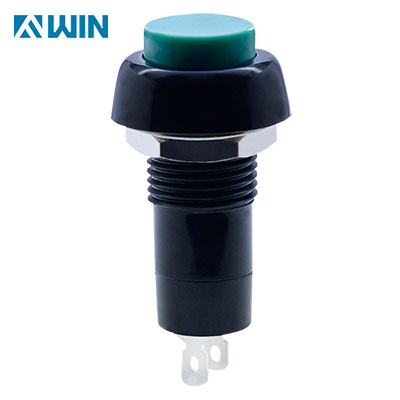

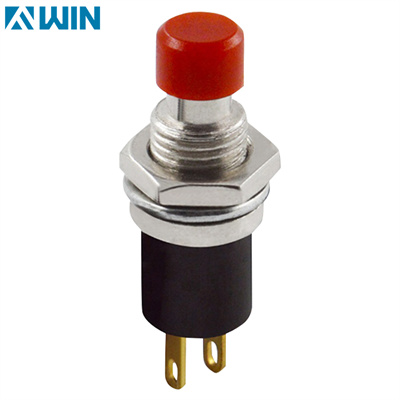

This is a SPST momentary push button switch with 2 pin,the top button diameter is 5.7mm and cut out size is 7.5mm.there has multiple button color selections.the operation force is 200gf and with 1.4mm full travel.

the push button switch is widely used to industry equipment,medical equipment,control panel and automation.

Specifications

Rating:3A 125VAC	Temperature:0℃~85℃
Contact Resistance:50mΩ(max)	Function:OFF-(ON)
Insulation Resistance:DC 500V 100MΩ(Min)	Cut-out:7.5 diameter
Withstanding Voltage:1000VA C for 1 minute	Panel thickness:3mm Max
Life Expectancy:10,000 cycles	Base :brass,Ni plated
Total travel:1.4±0.4mm	Cap:ABS
Operation force:200±50gf	Terminal:Copper,silver or Tin plated Nut: Brass,Ni plated
Mechanical Life:10,000 cycles Min	Base :brass,Ni plated
