TOGGLE SWITCH

  • Panel Mount Toggle Switch
Panel Mount Toggle Switch

Panel Mount Toggle Switch


The R8015 series toggle rocker switch is a SPDT Toggle Switch, On-On, Panel Mount,

has multiple configurations options,such as ON-ON,ON-(ON),ON-OFF-ON,(ON)-OFF-(ON),ON-OFF-(ON).the R8015 series miniature toggle switches offer numerous actuator options and termination options including right angle PC mount,it has three position.

Panel Mount Toggle Switch(图2)

Specifications

Rating

3A  250VAC or 28VDC ; 5A 125VAC

Electrical Life

10,000 cycles

Contact Resistance

10 mΩ max

Insulation Resistance

1,000MΩ min

Dielectric Strength

AC 1,500 V for 1 min

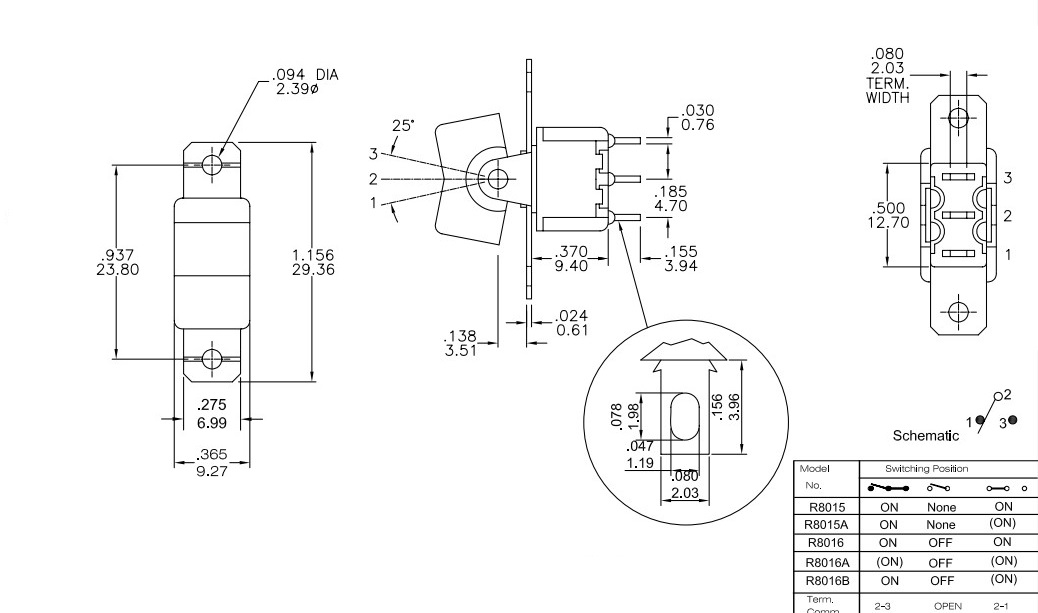

R8015-R11-2-BQ-H 尺寸.JPG
