ILLUMINATED TACT SWITCH

LED Tact Switch Right Angle

View PDF materials

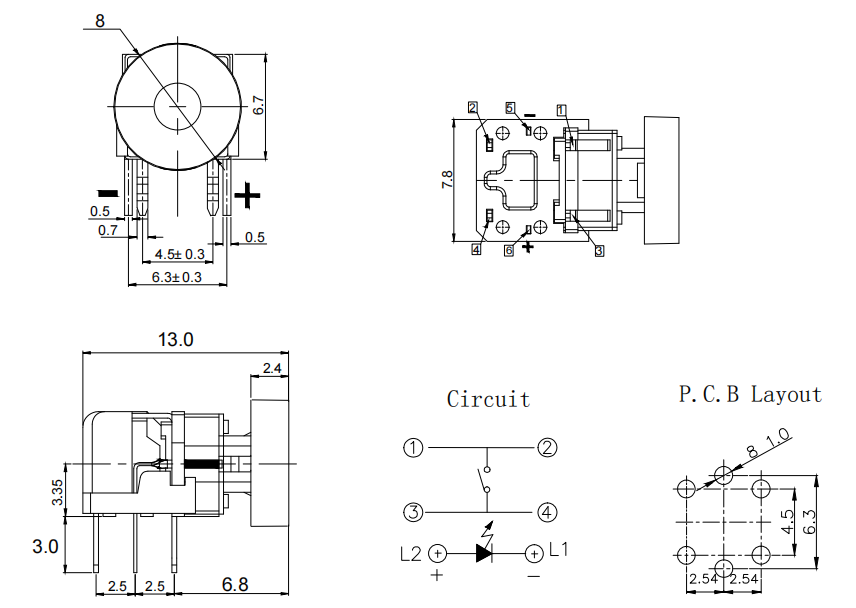

LED Tact Switch Right Angle(图1)

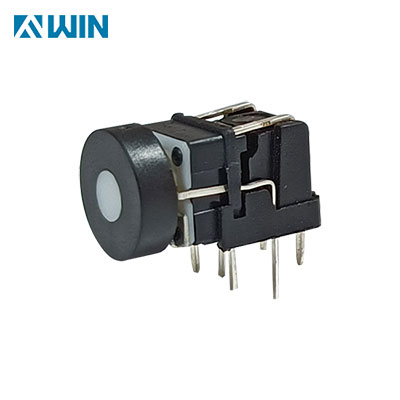

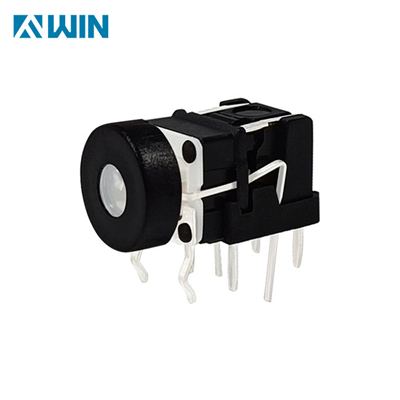

this is a right angle illuminated tact switch with diameter 8mm black etched icons cap,it provides with multiple cap size and customized icons,there is many LED colors options,it's called 90 degree led tact switch button.

The TS17 series Tact Switch has LED Illumination in a right angle design,it’s right-angle mount method save more install space,

The click response of the button lets the user feel the feedback from the switch.
The contact dome, which also acts as a moving contact, has specific materials, surface processing and shape properties to maintain a stable contact over a long life period.

LED Tact Switch Right Angle(图1)
