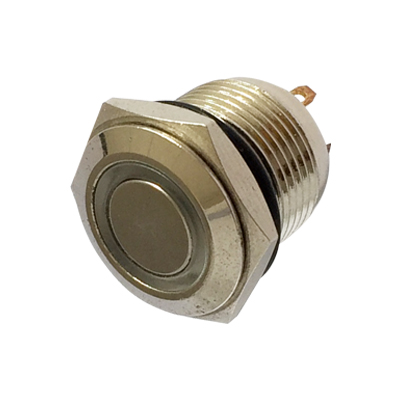

Metal Push Button Switch

Metal Push Button Switch is designed for panel-mounted control applications.

Product Introduction

A metal push button switch is a mechanical switch used to control electrical circuits through a simple push operation. Compared with plastic button switches, its metal housing provides a more solid external structure and is suitable for equipment that requires a stronger control interface.

FVWIN metal push button switches are available in different panel mounting sizes, head styles, operating functions, terminal configurations, and LED options. Depending on the model, the switch can be configured as momentary or latching. LED ring, dot, or power-symbol illumination can also be selected when visual status indication is needed.

For outdoor and new energy equipment, protection against dust and water is often an important part of switch selection. IP65 or IP67 versions can be used for applications where the control panel may be exposed to moisture, dust, or changing outdoor conditions.

Product Specifications

Main Benefits and Selling Points

1. Metal Construction for a More Durable Control Interface

The metal housing gives the switch a firm and solid feel during operation. It is suitable for equipment where the external button may be pressed frequently or exposed to general mechanical contact.

For outdoor and industrial equipment, a metal button can also provide a more robust panel interface than a standard plastic switch. The exact material and surface finish depend on the selected model.

2. IP Protection for Outdoor Equipment

Selected FVWIN metal push button switches are available with IP65 or IP67 protection. These versions are designed for applications where dust and water protection are important.

This makes them suitable for equipment such as outdoor control boxes, EV charging equipment, solar equipment, industrial controllers, and other systems that may operate in humid or dusty environments.

The IP rating applies to the switch when properly installed. The complete equipment enclosure and panel sealing should also be considered during product design.

3. Momentary and Latching Options

Different control systems require different switching methods.

Momentary switches operate while the button is pressed and return after release, making them suitable for reset, start, trigger, and signal input functions.

Latching switches maintain their switching state after the button is pressed and can be used for power control or other on/off operations.

Choosing the correct function depends on the circuit and equipment control logic.

4. LED Options for Clear Status Indication

For applications where operators need to see the switch status, LED options can be added. Depending on the model, FVWIN offers ring LED, dot LED, or power-symbol illumination.

LED indication can be used for power, operating status, or function identification. Different LED colors and voltage options may be available according to the product series.

5. Panel-Mount Design

The metal push button switch is designed for direct panel mounting. Different mounting sizes and head styles allow engineers to select a configuration according to the available panel space and equipment appearance.

Before ordering, buyers should confirm the cut-out size, panel thickness, button height, terminal position, and installation method.

Applications

FVWIN metal push button switches can be used in a wide range of equipment, including:

1. EV charging stations

2. Solar PV inverters

3. Wind power control systems

4. Outdoor electrical equipment

5. Smart irrigation controllers

6. Industrial automation equipment

7. Control cabinets

8. Access control systems

9. Vending and commercial machines

10. Audio and professional equipment

11. Power control equipment

12. Electronic devices

For new energy and outdoor equipment, the main selection points are usually protection rating, mechanical durability, panel space, operating function, electrical rating, and wiring method. Selecting these parameters according to the actual working environment helps avoid problems during installation and later operation.

About FVWIN

FVWIN is a manufacturer of electronic switches and connectors, supplying metal push button switches, illuminated tact switches, DIP switches, DC power jacks, and other electronic components.

FVWIN provides different switch configurations for industrial equipment, new energy products, outdoor devices, and electronic control systems. OEM and ODM services are available for customers requiring specific dimensions, button designs, LED configurations, wiring, or other product modifications.

Samples and technical specifications can be provided for evaluation before volume production.

FAQ

Q1: What is a metal push button switch used for?
A: It is used to manually control an electrical circuit through a push operation. Typical functions include start, stop, reset, power control, and signal input.

Q2: Are FVWIN metal push button switches waterproof?
A: Selected models are available with IP65 or IP67 protection. The exact rating depends on the model and installation conditions.

Q3: What is the difference between momentary and latching types?
A: A momentary switch returns to its original state after release, while a latching switch maintains its switching state until operated again.
