Broadcast Equipment Backlit illuminated Push Button

These Audio/Video illuminated LED push buttons switches features sculptured, engraved, square caps in sizes 12*12mm for design flexibility in Pro AV System Solutions applications.the icon translucent covers on the input and output pushbuttons front panel button indicators red, green, and amber,we also accept to customized the legends on the cap.

Size：12x12x23mm

Model:PB24-0000X

Circuit：SPST

Rated：12VDC ,100mA

Contact Resistance：200mΩ（max）

Insulation Resistance：100MΩ（min）

Withstand Voltage：250VAC for 1 minute

Operation Force：250±100gf

Total Travel：4.5±0.2mm

Function：OFF-(ON) Momentary

Soldering Temperature：350℃ for 3 seconds

Using Temperature：-20℃ ~ 70℃

Life：1,000,000 cycles

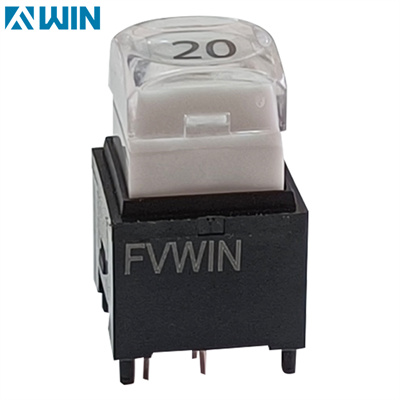

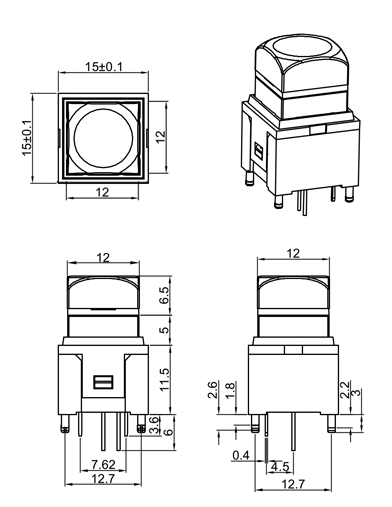

12*12mm illuminated LED Broadcast Style Buttons(图1)

Broadcast,audio/video equipment, measuring instrument, communication equipment, Multi-Channel & Monitor Panels,Control Processor,Module Desktop Controller ,matrix switcher etc

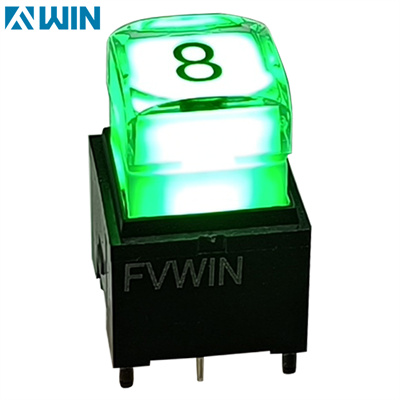

Illuminated Controller Front Panel Button Switch(图2)
