Illuminated Push Button Switches

  • Illuminated LED Push Button Switch For Console
Illuminated LED Push Button Switch For Console

Illuminated LED Push Button Switch For Console

Illuminated LED Push Button Switch For Console

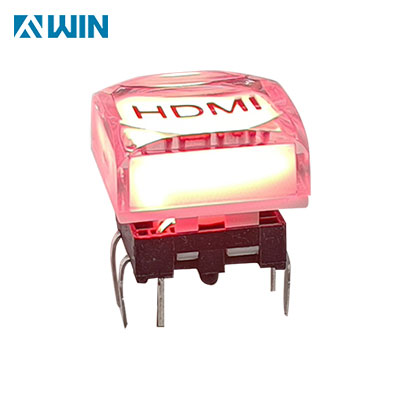

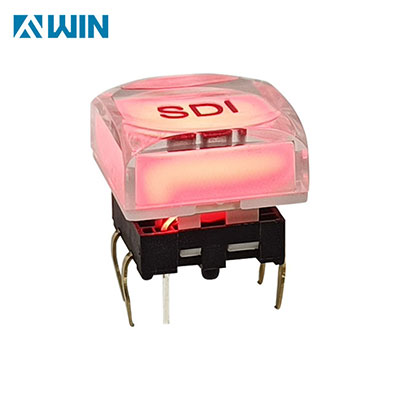

Model:TS15-10W57WTRX

This TS15 Series illuminated broadcasting button offers six illumination colors plus many bicolor option in a through into mount design,it’s SPST,momentary function and 250gf operating force;this control panel LED push button has rating of 50 mA at 12 VDC and a travel of 0.4 mm,the TS15 series Illuminated LED Broadcast Backlit Buttons offers three clear cap sizes in 12*12mm and 15*15mm as well as 16mm,what’s more,we provide the engraved legends on the sculptured caps.


Dimension

Illuminated Buttons


Application

video integration,AV system,Lighting Control System,lighting console,digital musical instruments etc.

Crystal Illuminated LED Panel Push Button(图2)
