Illuminated Push Button Switches

illuminated Button Switch For Stage Light Controller

illuminated Button Switch For Stage Light Controller

View PDF materials

illuminated Button Switch For stage Light Controller

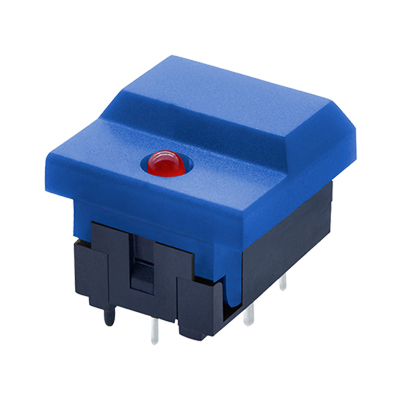

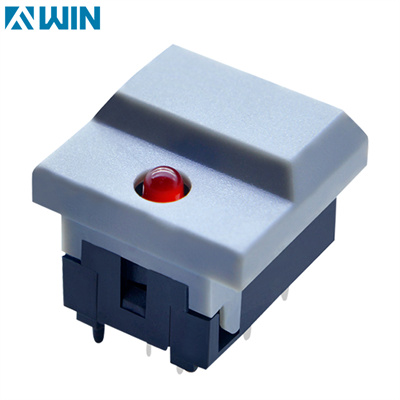

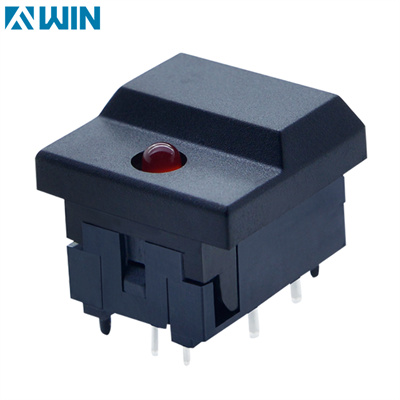

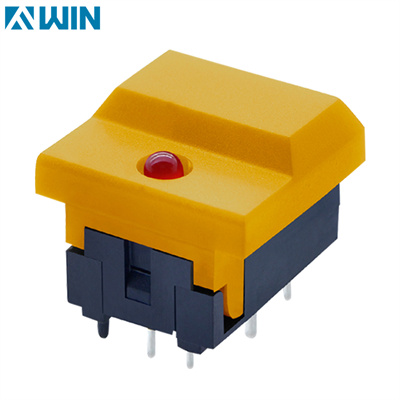

ThePB86 series illuminated push button switch with 17.4x17mm large cap,the cap color can be customized with yellow,orange,blue,red,white,green an others.There is available with no led,single color LED and bi-color LED selections.it’s a responsive tactile button,when you actuation it,it has crisp audible feedback and multi-color LED indicators,it’s widely used to DMX lighting control or stage lighting consoles.

Model:PB86-B1UUNR

Circuit：SPST

Current rating: 12mA 24VDC

Operating force: 170±50gf

Travel:2.0±0.4mm;

Operating life:50,000 cycles Min;
