Momentary Push Button Switches

12mm Tactile Momentary Switch

· Switch type: SPST momentary

· Contact resistance: 50mΩ Max

· Operating force: 130±50gf

· Actuator diameter: 9mm

· Insulation resistance: 100MΩ Min

· Dielectric strength: 500V AC (50~60Hz) for 1 minute

· Life (nominal current & voltage): 100000 cycle

· Temperature range: -10ºC to +65ºC

· Solderability: 235ºC for 5 seconds

· Travel: 0.80mm Max

· Colour: Green

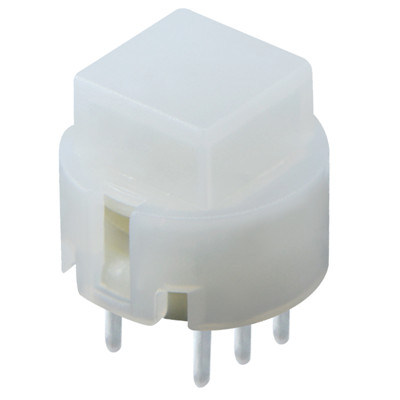

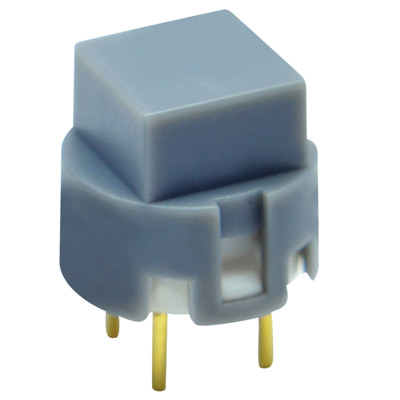

12mm Tactile Momentary Switch(图1)
